LG INR18650MH1 18650 3200mAh 10A High Drain Battery Cell MH1


For most elcetronic devices, especially power tools such as e-bike and drill, e-cigarettes.



Item Specifications
Nominal Voltage 3.67V
Nominal Capacity 3200mAh
Standard charge

Constant Current: 0.5C (1550mA)

Constant voltage : 4.2V

End current(Cut off) : 50mA

Max. Charge Current 1.0 C (3100mA)
Max. Charge Voltage 4.20 ± 0.05 V
Standard Discharge

Constant Current: 0.2C (620mA)

End current(Cut off) : 2.5V

Max. continuous discharge

10A

Discharge cut-off voltage
End of discharge
2.5V
( 2.5V discharge cut-off is better in cycle life )
Cell weight

49.0g max.

Cell dimension

Height : 65.15 mm max.
Diameter :  18.39 ± 0.11 mm

Operating temperature
(surface temperature)

 Charge : 0 to 45
(recommended recharge release < 45°C)
Discharge: -20 to 60
(recommended re-discharge release < 60°C)

Storage temperature
(Recovery 90% after storage)

1 year -20~20°C
3 months -20~45°C
1 month -20~60°C



Applicable to most elcetronic devices, especially for thoses that require high discharge current such as e-bike and drill, e-scooters and power tools.

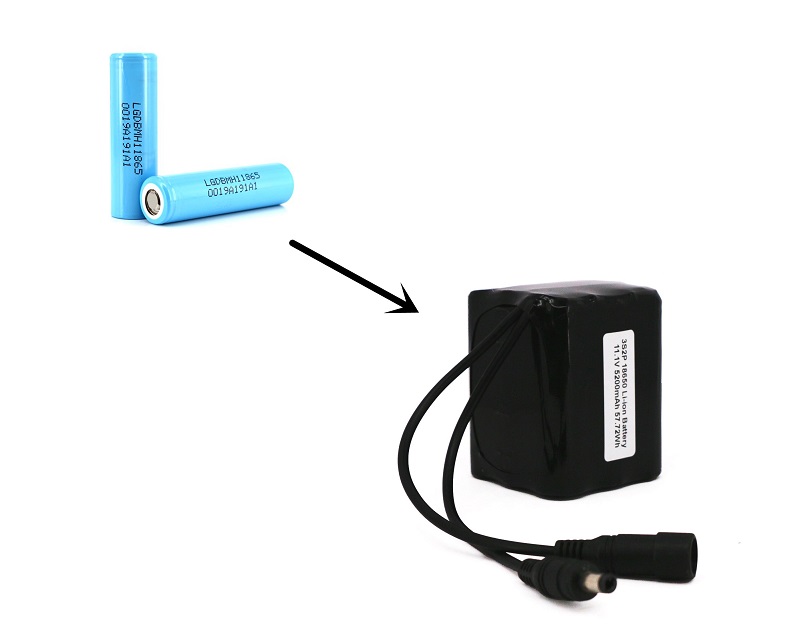

These cellls can only be applied to battery pack assembling by adding a BMS/PCM (protection circuit module)
