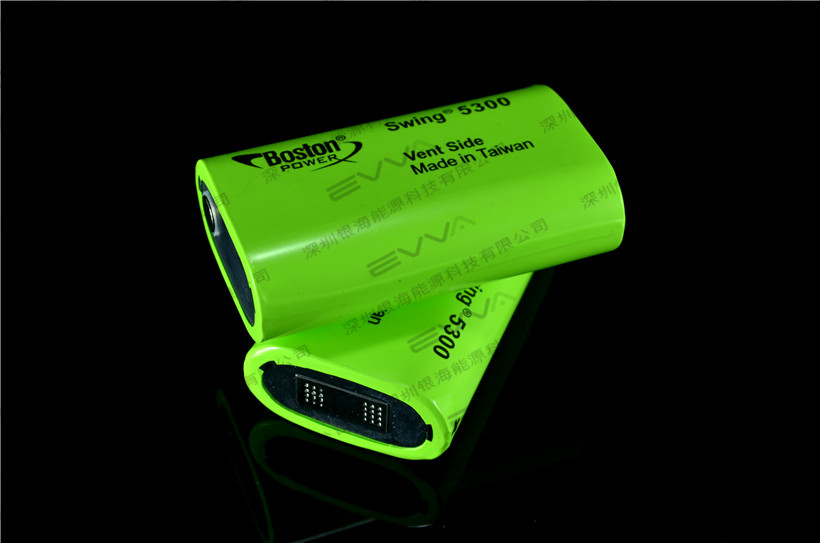

3.7V 5300mAh 13A Boston Power Swing 5300 Rechargeable Lithium ion Cell


Suitable for Battery Electric Vehicles (BEVs), Plug-in Hybrid Electric Vehicles (PHEV), Light Commercial Vehicles (LCV), Neighborhood Electric Vehicles (NEV), and Stationary Energy Storage.

Specifications

Item Specifications
Nominal Voltage 3.65V
Nominal Capacity

5300mAh

Nominal Energy

19.3Wh

Energy Density

Gravimetric: 207 Wh/kg
Volumetric: 490 Wh/L

Cycle Life

(1C discharge at 23°C)

100% DOD:  >1000 cycles
90% DOD: >2000 cycles
80% DOD: >3000 cycles

Standard Charging Method

Constant Current (CC): 3.7A (0.7C) to 4.2V
Constant Voltage (CV):  4.2V to 50 mA

Max charge rate (continuous) 10.6A
Max. Charge Voltage 4.20 V
Max continuous discharge rate
(0 -100% SOC)

13A

Allowable 10s pulse capability

1000 W/kg

Cell weight

93.5g max.

Cell dimension

Height :  19.0mm
Length :   64.8mm
Width: 37.3mm

Operating temperature
(surface temperature)

Charge : 20 to 60
Discharge: -40 to 70

Storage Temperature

-40 to 60


Applications

Suitable for Battery Electric Vehicles (BEVs), Plug-in Hybrid Electric Vehicles (PHEV), Light
Commercial Vehicles (LCV), Neighborhood Electric Vehicles (NEV), and Stationary Energy Storage.
