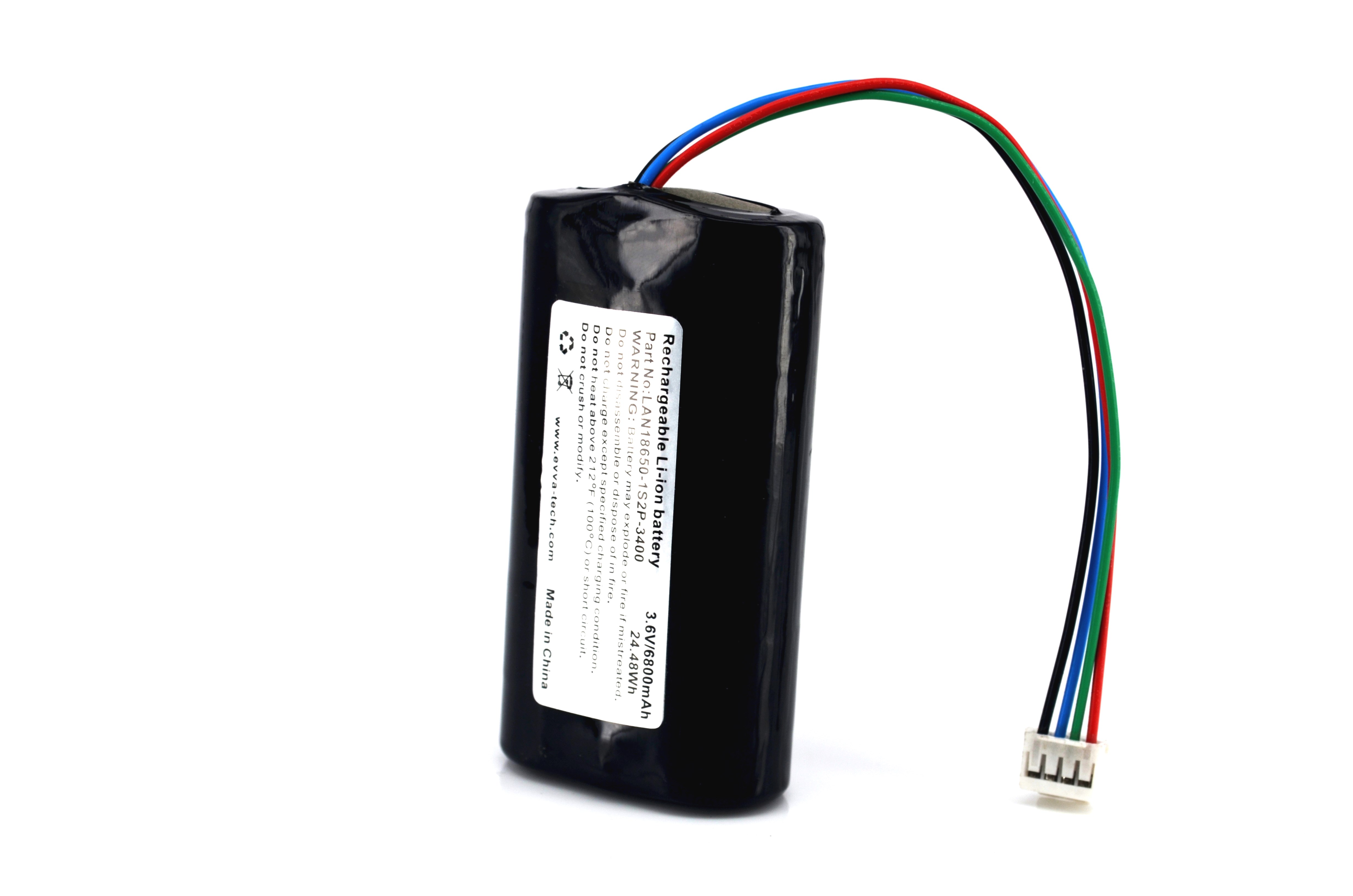

18650 1S2P 3.7V Li-ion Battery Pack 6800mAh


Built-in IC chip will prevent battery pack from over charge,over discharge, over current and prolong battery life

Specifications

Item Specification
Model EV18650-1S2P368
Nominal Capacity 6800mAh
Nominal Voltage 3.7V
Charging Voltage 4.2V
Charge Current 0.2C std.
0.5C rapid
Standrad Discharge Current 1.0C
Maximum Discharge Current 2.0C
End Voltage of Discharge 2.50V
Cycle Life >300cycles
Weight 100g max.
Size (max.) 38.0(L)*19.0(W)*68.0(H)mm
Customized Acceptable

Application
Made of 2pcs of Panasonic NCR18650B 3400mAh cylindrical 18650 cell with PCB for full protection
Perfect for building 3.7V battery pack for bike lighting, RC toy (cars and airplanes), robots, cameras,  speakers, medical equipment and other portable devices.

OEM & ODM
Contact us via info@evva-tech.com to generate your own battery pack
Connector: for choice
wire type: for choice

Capacity: 3000mAh~7000mAh
