Date:2015-12-10

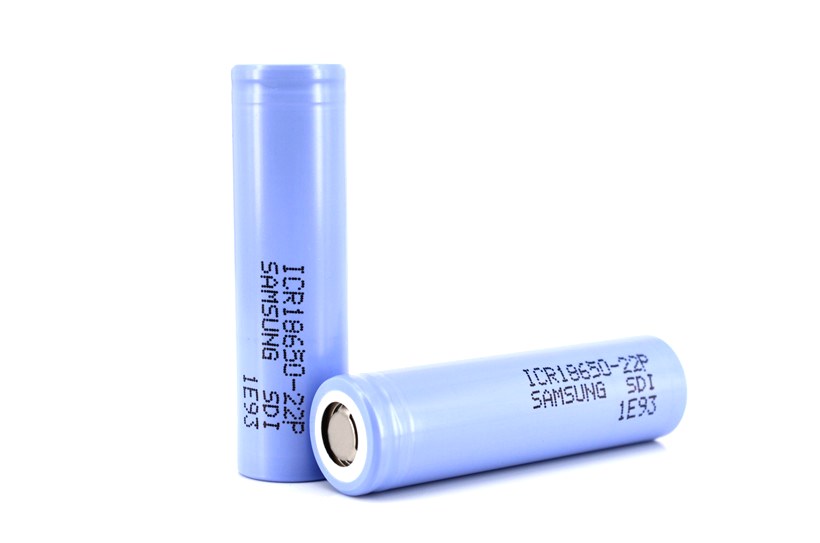

Samsung ICR18650-22P 2150mAh 10A High Drain Cell


Max. continuous discharge current: 10A

Specifications

NO. Item Specifications
1 Nominal Voltage 3.62V
2

Capacity

Typ: 2150mAh

Min: 2050mAh

3 Charging Voltage 4.20V±0.05V
4 Standard Charging

CC-CV, 1075mA

5 Rapid Charging

CC-CV, 2150mA

6 Charging Time

Standard Charging:3hours

Rapid Charging:2.5 hours

7 Continuous maximum discharge current 10A
8 Max. charge current 2150mA
9 Discharge cut-off voltage
End of discharge
2.75V
10 Cell weight 44.5g max.
11 Cell dimension

Height: 65.0 mm

Diameter: 18.4 mm

12 Operating temperature
(surface temperature)

Charge : -10 to 50
(recommended recharge release < 45°C)
Discharge: -20 to 70
(recommended re-discharge release < 60°C)
