Date:2016-03-12

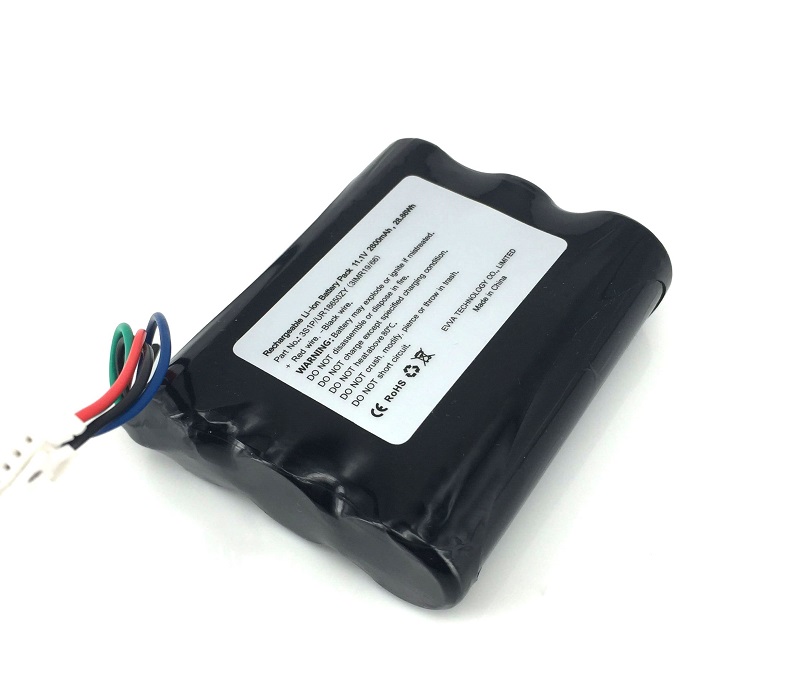

3S1P 11.1V Li-ion Battery Pack 10.8V 3S 18650 Battery Pack


Built-in IC chip will prevent battery pack from over charge,over discharge, over current and prolong battery life, with SMbus

Specifications

Item Specification
Model 3S1P/UR18650ZY
Nominal Capacity 2600mAh
Nominal Voltage 11.1V
Charging Voltage 4.2V
Charge Current 0.2C std.
0.5C rapid
Standrad Discharge Current 1.0C
Maximum Discharge Current 2.0C
End Voltage of Discharge 7.50V
Cycle Life >300cycles
Weight 148g max.
Size (max.) 69.0(L)*19.0(W)*54.0(H)mm
Customized Acceptable

Features
Made of 2pcs of Sanyo UR18650ZY 2600mAh cylindrical 18650 cell with PCB for full protection
Perfect for building 3.7V battery pack for bike lighting, RC toy (cars and airplanes), robots, cameras,  speakers, medical equipment and other portable devices.
Battery pack support System Management Bus (SMBus) protocol.
There is distinct SMBus for each section. The following data can be available through SMBus.
  • State of charge
  • Battery temperature
  • Cell voltage
  • Current drawn from the cells
  • Failure messages
  • Charging status
  • Discharging status

OEM & ODM
Contact us via info@evva-tech.com to generate your own battery pack
Continuous discharge: for choice
Connector: for choice
wire type: for choice

Capacity: 1500mAh~3500mAh
