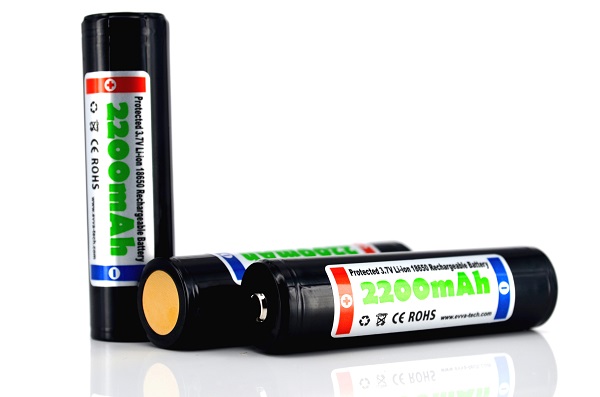

EVVA Protected 18650 2200mAh Rechargeable Li-ion Battery


Built-in Protection Circuit Module to protect battery from over charge, over discharge, short circuit, over temperature and low temperature

Specifications

Type

Protected 3.7V 2200mAh 18650 lithium battery

Supplier

EVVA TECHNOLOGY CO.,LIMITED

Cell

Samsung ICR18650-22F li-ion cell

Nominal voltage

3.6V

Nominal capacity

2200mAh

discharge at 0.2C mA

Stanard Charge voltage

4.20V ( Full Charged Voltage )

Standard Charge current

1100mA

Max. Charge current 2200mA
Max. Discharge current 4400mA

Charge Time(Std.)

3 hours

Discharge cut-off voltage

2.75V

Standard Discharge cut off current

30mA

PCB Protection trip current

about  6A

Operating environment

Charging, 0°C ~ 45°C ;  65±20%RH

Discharging, -20°C~60°C ;  65±20%RH

Storage environment

-20°C~60°C; Less than 1 month

-20°C~60°C; Less than 3 months

Cell Weight )

48g max.

Cell Dimension

(L)68.90mm*(D)18.60mm


Features
Widely applied for LED flashlight and LED torch
Protection: Protection circuit designed by Seiko, ICs made in Japan, very safe to operate
Original Genuine Samsung li-ion cell, high quality guaranteed
Long life cycle, environmentally freindly
OEM order(customized heated shrink wrap with logo) are available.
