Date:2022-05-26

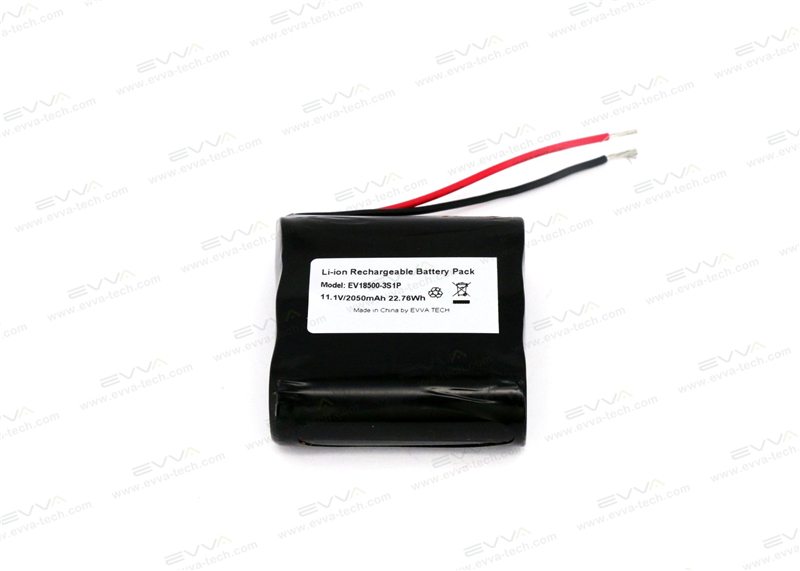

18500 3S1P 11.1V Li-ion Rechargeable Battery Wires Out 2050mAh
18500 3S1P Li-ion rechargeable battery with BMS
|
Item |
Specification |
|
Model |
EV18500-3S1P |
|
Nominal Capacity |
2050mAh |
|
Nominal Voltage |
11.1V |
|
Charging Voltage |
21.6V |
|
Rapid Charge Current |
1.0C |
|
Maximum Discharge Current |
1.0C for continuous
2.0C for peak |
|
End Voltage of Discharge |
7.5V |
|
Cycle Life |
≥300 cycles |
|
Weight |
125g max. |
|
Size |
57.4mm*53.5mm*18.5 approximate |
|
Customized |
Acceptable |
Made of 3pcs of 18500 Li-ion rechargeable cell with PCB protection circuit.
Well protected gainst over charge, over discharge, short circuit and over current
Applicable to a variety of portable electronic devices
OEM orders available
