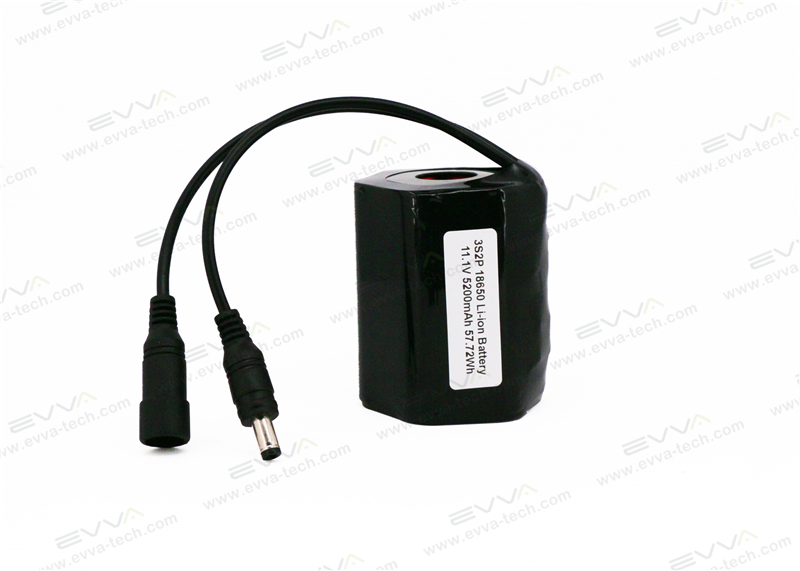

3S2P 18650 11.1V 5200mAh Li-ion Rechargeable Battery Pack Wires Out with DC Connector

18650 3S2P 11.1V battery pack with protection circuit module and DC connectors
Item Specification
Model EV1865L-3S2P
Shape Hexagonal prism
Cell Origin Samsung/Sanyo 18650 Li-ion high quality cell
Nominal Capacity 5200mAh (can be customized)
Nominal Voltage 11.1V
Charging Voltage 12.6V
PCM function Protect battery from:
Over charge
Over discharge
short circult
Charge Current 0.2C std.
0.5C rapid
Standrad Discharge Current 1.0C
Maximum Discharge Current 2.0C
End Voltage of Discharge 7.5V
Weight 305g approx.
Dimension (D)56mm*66mm(H)
Connector type DC
Customized Acceptable
Customized battery pack with protection circuit module.
Applicable to lighting.
