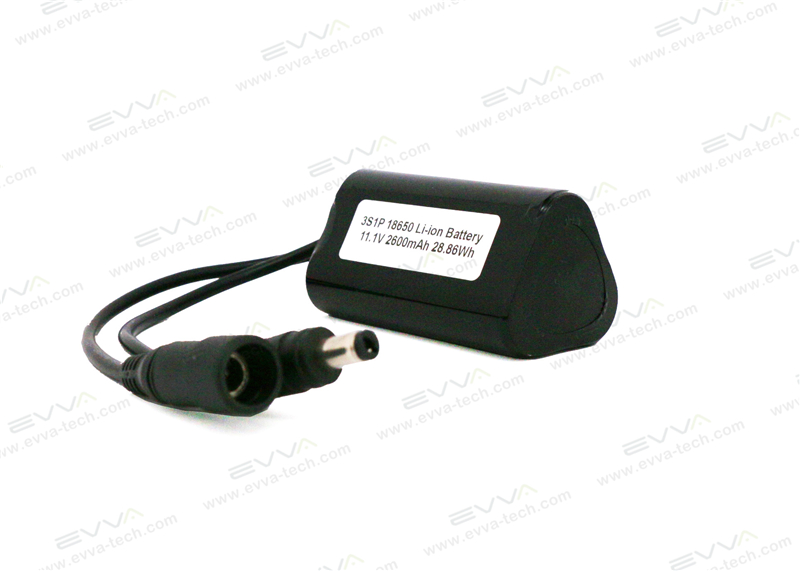

18650 3S1P 11.1V 2600mAh Li-ion Rechargeable Battery Pack

18650 3S1P Li-ion battery pack in triangular prism shape
Item Specification
Model EV1865L-3S1P
Shape Triangular prism
Cell Origin Samsung/Sanyo 18650 Li-ion high quality cell
Nominal Capacity 2600mAh (can be customized)
Nominal Voltage 11.1V
Charging Voltage 12.6V
PCM function Protect battery from:
Over charge
Over discharge
short circult
Charge Current 0.2C std.
0.5C rapid
Standrad Discharge Current 1.0C
Maximum Discharge Current 2.0C
End Voltage of Discharge 7.5V
Weight 158g approx.
Dimension 36mm*36mm*66mm
Connector type DC
Customized Acceptable
Customized battery pack with protection circuit module.
Applicable to lighting.
