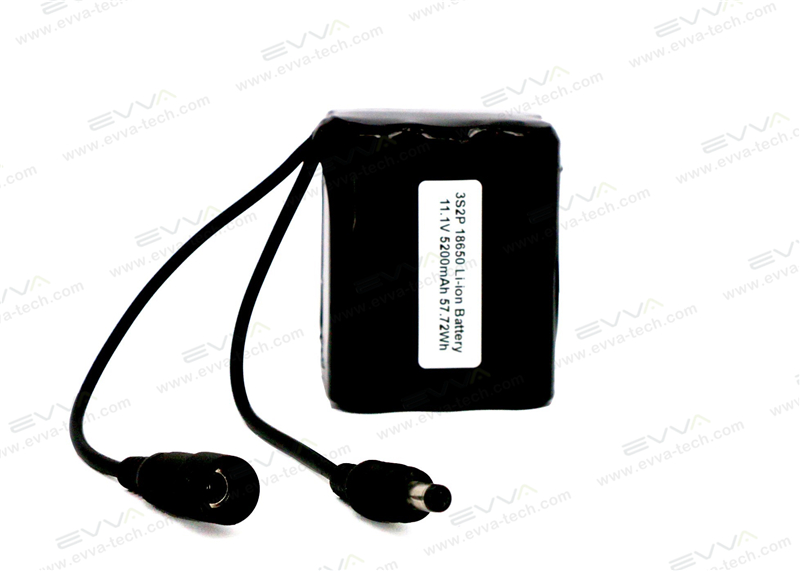

18650 3S2P 11.1V 5200mAh Li-ion Battery Pack with DC connectors


18650 3S2P Li-ion rechargeable battery pack with protection circuit module and DC connectors
Item Specification
Model EV1865F-3S2P
Cell origin Samsung or Sanyo Li-ion high quality cell
Nominal voltage 11.1V
Charge Voltage 12.6V
Nominal Capacity 5200mAh (can be customized)
PCM function can protect battery from:
over charge
over discharge
short circuit
Standard discharge current 1.0C
Cut-off voltage 7.5V
Connector type DC
Dimension 56mm(L)*36mm(W)*68mm(H)
Weight 310g approx.
Customized acceptable
Applicable to lightintg and other devices with this connectors
