Date:2019-04-19

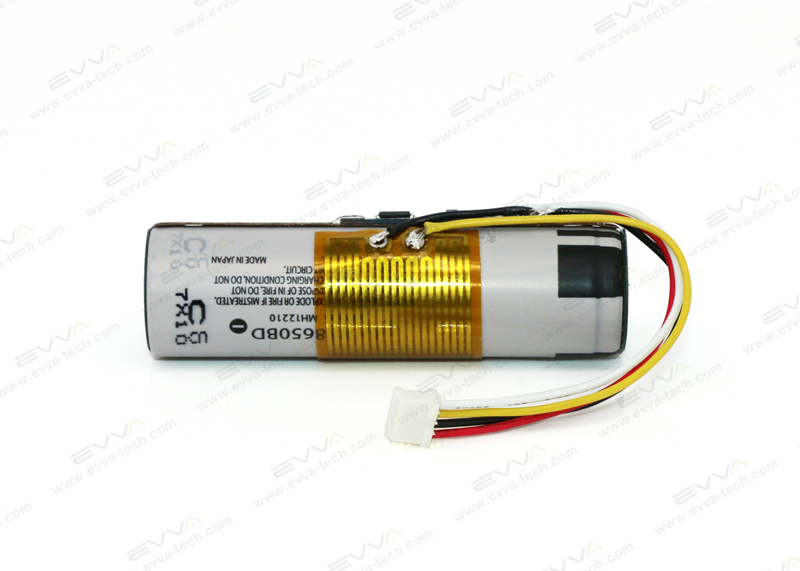

3.7V 3200mAh 18650 Li-ion Battery with Heating Element


The heating element is added to ensure the battery to be heated and can function under cold weather
Item Specification
Model EV1865H-1S1P
Nominal Voltage 3.7V (can be customized)
Nominal Capacity 3200mAh (can be customized)
Charging Voltage 4.2V std.
Cut-off Voltage 2.5V
Standard Charge Current 0.5C
Standard Discharge Current 0.2C
Max. discharge current 10A
PCB  Yes
Heating Element Self-limiting temperature, dimension, thinkness, with 3M adhesive
Heating temperature customized
No.of wires 3 or 4
Weight 50g max,
Dimension 18.95mm(D)*67.2mm(H) approx.
The heating element or battery heater ensures that the battery can be kept and operated properly at optimal temperature with a minimum of energy consumption.
The inherent self-limitation ensures that each part of battery can be heated evenly and not overheated to damage.
