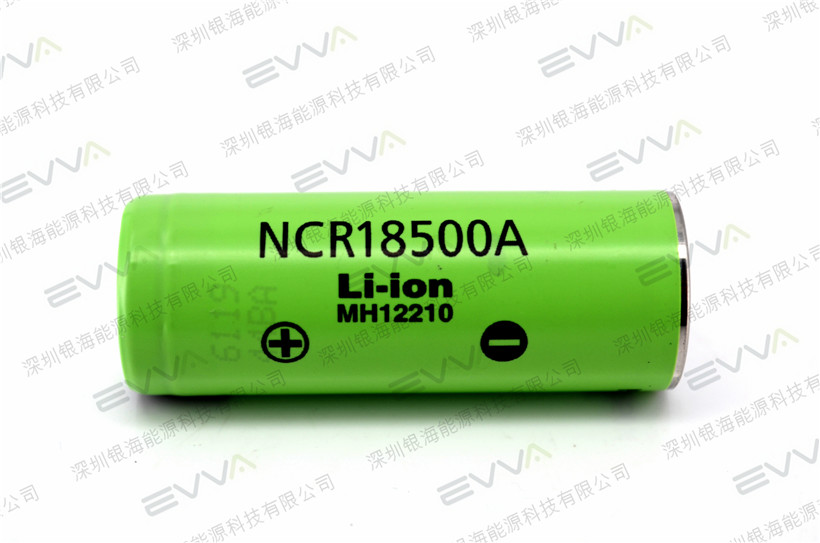

Panasonic NCR18500A 3.6V 2040mAh Lithium ion Battery


18500 high quality Li-ion battery with high real capacity
Item Specification
Typical Capacity 2040mAh
Minimum Capacity 1940mAh
Charging Voltage 4.2V
Nominal Voltage 3.6V
Charging Method CC-CV
Standard Charging Current 0.7C
Discharge Cut-off Voltage 2.50V
Weight 33.5g max.
Dimension 49.36mm(D)*18.15mm(H) max.
Operating Temperature Charge: 10~45℃
Discharge: -20~60℃
Storage Temperature -20~50℃
Applicable to a wide field of electronic devices like toy, security equipment, vehicle-mounted devices, ect.
