Date:2020-06-12

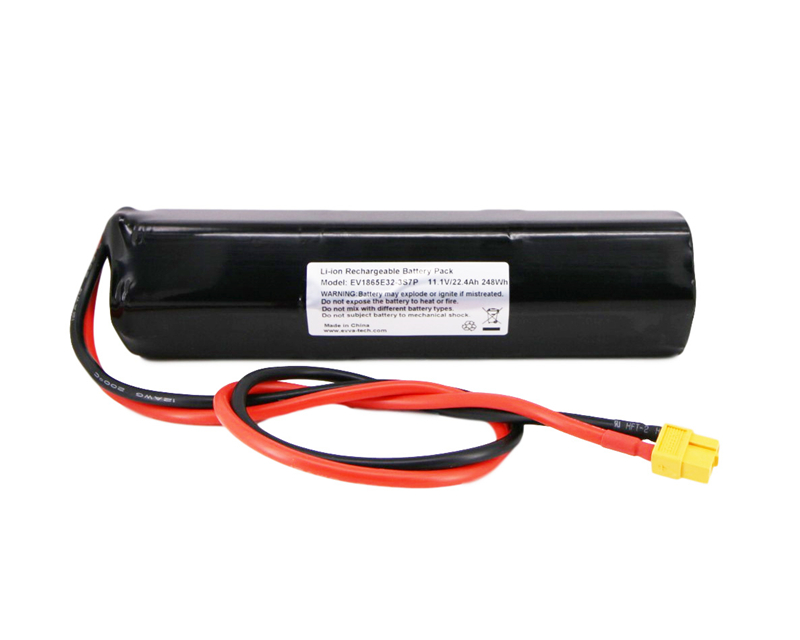

18650 3S7P 12V Rechargeable Lithium Cylindrical Battery Pack 11.1V 22.4Ah


Use Samsung INR18650-32E cells with high power and high capacity, high-end BMS to protect battery from overcharge, overdischarge and short circuit, etc.
Items Specifications
Model EV1865E32-3S7P
Nominal Voltage 11.1V
Nominal Capacity 22.40Ah (can be customized)
Cell Origin Samsung, Panasonic, LG Chem, Murata, etc.
Standard Charge Current 0.2C
Full Charge Voltage 12.6V
Max. Continuous Discharge Current 30A (OEM)
Discharge Cut-off Voltage 7.5V
Weight 1100g max.
Connector XT60
Cycle Life over 1000 cycles
Dimension (D)58.20mm*(H)200mm approx.
Applicable to a wide field of indoor and outdoor applications that require high power discharge, such as e-bike, UPS, solar storage system and other electronic devices.
OEM available on shape, capacity, wires, BMS, connectors etc.
