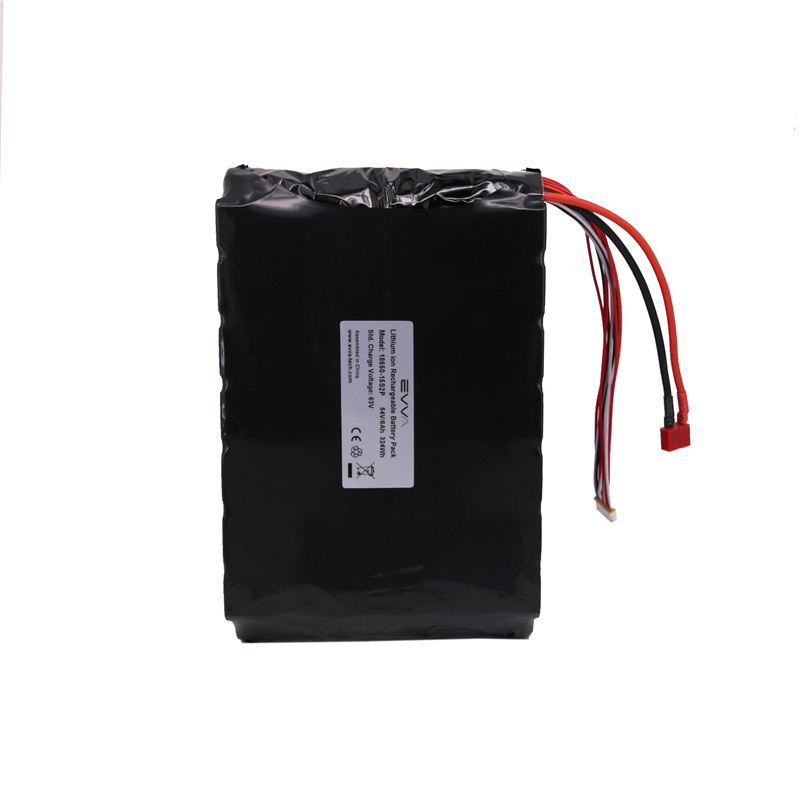

High Performance 54V Lithium ion Rechargeable Battery Pack for Electric Scooter Skateboard


Selected A Grade Power Li-ion cells from Murata/Samsung/LG Chem/A123,with balancing and temperature protection.
Part No. EV1865-15S
Cell origin Selected A Grade Samsung or Murata power cells
Nominal Capacity 6000mAh~10000mAh (customized)
Nominal Voltage 54V
Standard Charge Voltage 63V
Standard Charge Current 2A
Max. Charge Current 1C
NTC built-in Yes
Connector XT-60
Balancing function Yes
Max. Continuous Discharge Current 60A (with temperature cut)
Discharge Cut-off Voltage 41.25V
Dimension (L)180.00mm*(W)135.00*(H)40.00mm approx.
Weight 1.5kg max.
Operating Temperature Charge: 0~45dgC
Discharge: -20~60dgC
Applicable to electric bike, electric scooter, electric skateboard, electric motorcycle, RC toy, and other fields that require high power performance.
