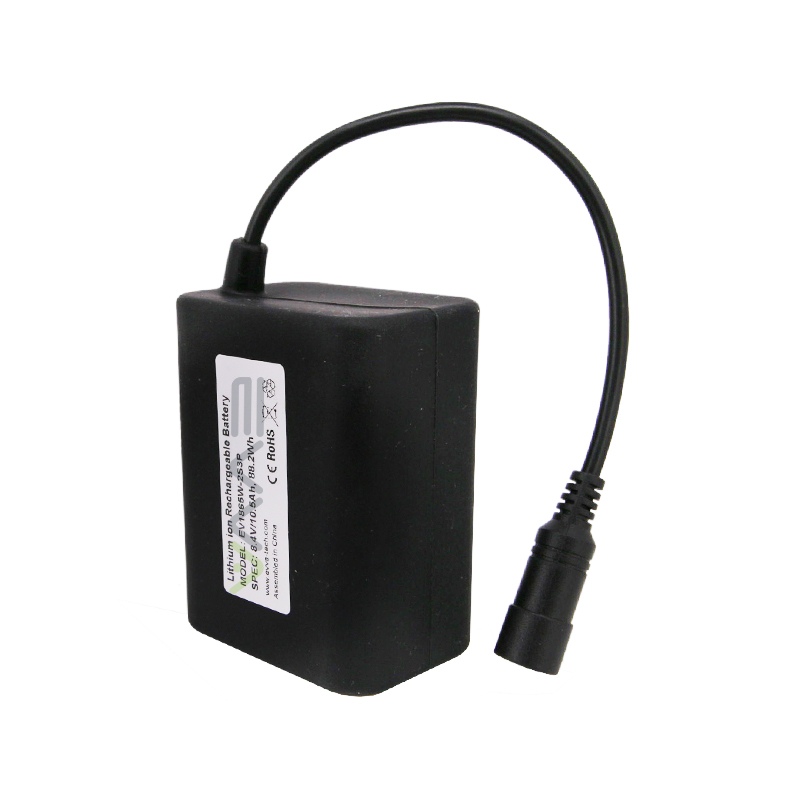

| Part No. | EV1865W-2S3P |
| Cell origin | Samsung, LG Chem, Panasonic or Murata original cells |
| Nominal Capacity | 7800mAh~10500mAh (customized) |
| Nominal Voltage | 7.4V |
| Standard Charge Voltage | 8.4V |
| Standard Charge Current | 2A |
| Standard Discharge Current | 0.2C |
| Max. Continuous Discharge | 1C |
| Discharge Cut-off Voltage | 5V |
| Connector | DC |
| PCM Function | against over-charge, over-discharge and short circuit |
| Case | waterproof rubber |
| Dimension | (L)58.00mm*(W)72.00*(H)37.00mm approx. |
| Weight | 320g approx. |
| Operating Temperature |
Charge: 0~45dgC Discharge: -20~60dgC |
