Date:2022-08-01
LithiumWerks APR18650M1B 18650 30A 3.3V 1100mAh LiFePo4 Power Cell
The cells offer utstanding cycle life, stable chemistry, faster charge and consistent output.
Model |
APR18650M1B |
Nominal Capacity |
1200mAh |
Minimum Capacity |
1100mAh |
Nominal Voltage |
3.3V |
Recommended Charge Voltage |
3.6V |
Max. Continuous Charge Current |
4A |
Max. Pulse Charge Current |
10A |
Float Voltage |
3.5V |
Max. Continuous Discharge Current |
30A |
Max. Pulse Discharge Current |
50A (10s) |
Cycle Life |
over 2000 cycles |
Dimension |

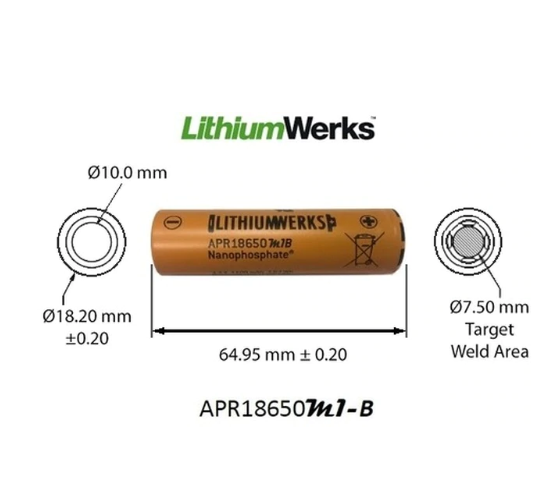

(D)18.5mm*(H)65.15mm max. |
Weight |
39.5g ±1.0 g |
Operating Temperature |
0~55dgC |
Applicable to Energy Storage, Uniterruptible Power Supplies, Communication technologies, Aerospace, Electrified mobility devices, Industrial equipment, Medical devices and Toys, etc.
