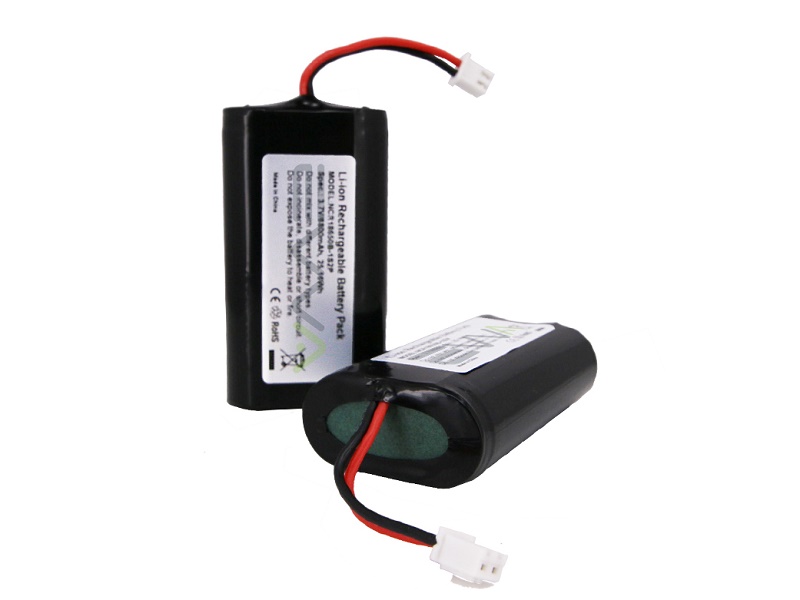

18650 1S2P 3.7V 6800mAh Lithium Battery Pack with PCM Protection Circuit

With NCR18650B Li-ion cells and high-end self-designed PCM, quality and high performance guaranteed.
Model NCR18650B-1S2P
Part No. 1002-03-ZE05
Cell origin A Grade Panasonic NCR18650B Li-ion cells
Nominal Capacity 6800mAh (customized)
Nominal Voltage 3.7V
Std.Charge Voltage 4.2V
Std.Charge Current 0.5C
Std. Discharge Current 0.2C
Max. Discharge Current 5A (Customized)
PCM built-in Yes
Connector JST
PCM function Protect battery from over-charge, over-discharge and short circuit
Discharge Cut-off Voltage 2.75V
Dimension (L)36.50mm*(W)18.50*(H)65.50mm approx.
Weight 100g max.
Operating Temperature Charge: 0~45dgC
Discharge: -20~60dgC
