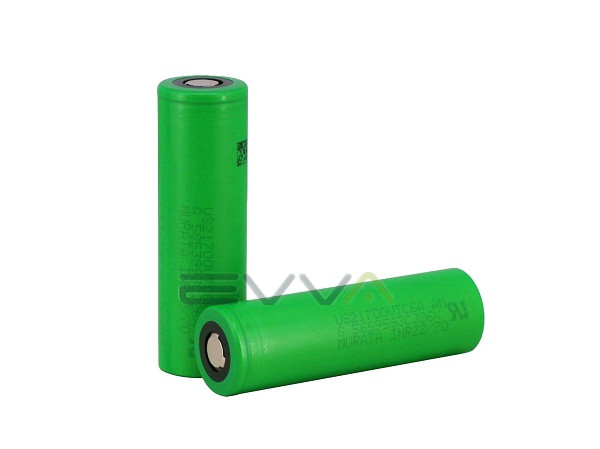

Murata US21700VTC6A 4000mAh 40A Lithium ion Rechargeable Battery


A high power 21700 type battery with 40A max.discharge, ideal for all high performance applications.
tem Specification
Nominal Voltage 3.6V
Nominal Capacity 4100mAh
Rated Capacity 4000mAh
Charging Voltage 4.2±0.05V
Std. Charging Current 4.5A
Continuous Max. Charging Current 9.0A
Continuous Max. Discharging Current 40A
Discharge Cut-off Voltage 2.5V
Dimension H: 69.8±0.2mm
D: 21.35±0.2mm
Weight 67.5±1.5g
Allowable Environment Temperature Charge: 0~60℃
Discharge: -20~60℃
Applicable to a wide range of high performance devices, such as power tools, vacuume cleaner, electric scooter, electric skateboard, electric vehicle etc.
The cell is not for single use without any protection, not for vaping.
EVVA is capable of assembling customized battery packs with such high-end A Grade battery cells, with our advanced battery equipments, high quality self-designed BMS and rich battery experience.
