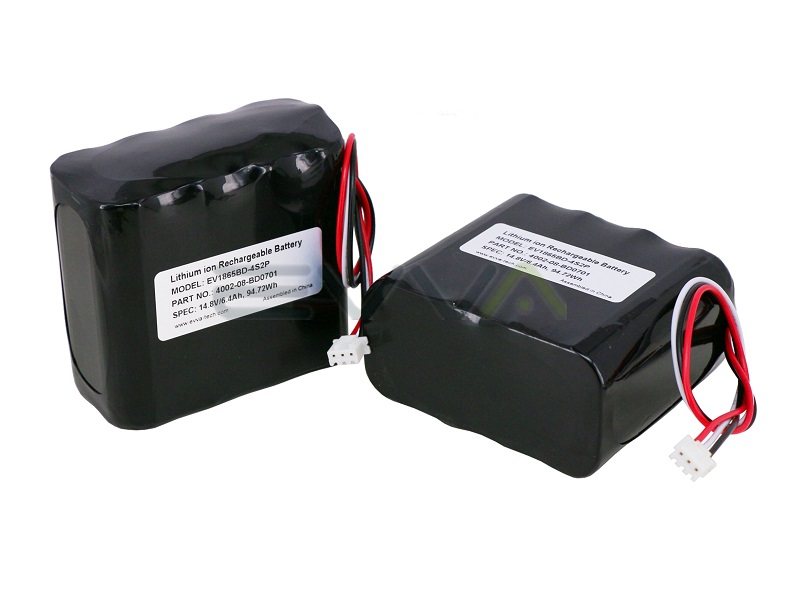

Customized 18650 4S2P 14.8V Li-ion Rechargeable Battery with PCM 6400mAh 7000mAh


With A Grade Li-ion cells and high-end self-designed PCM, quality and high performance guaranteed.
Model EV1865BD-4S2P
Part No. 4002-08-BD0701
Cell origin Panasonic, Samsung, LG Chem, Murata etc.
Configuration 4S2P (customized)
Nominal Capacity 6400mAh (customized)
Nominal Voltage 14.8V (customized)
Std.Charge Voltage 16.8V
Std.Charge Current 1.2A(0.2C)
Quick Charge Current 3.2A (0.5C)
Std. Discharge Current 1.2A(0.2C)
Max. Discharge Current 4~15A (Customized)
PCM built-in Yes
Connector Customized
PCM function Protect battery from over-charge, over-discharge and short circuit
Discharge Cut-off Voltage 11V
Dimension (L)75.0mm*(W)37.20*(H)69.80mm approx.
Weight 390g max.
Operating Temperature Charge: 0~45dgC
Discharge: -20~60dgC
