Date:2021-04-15

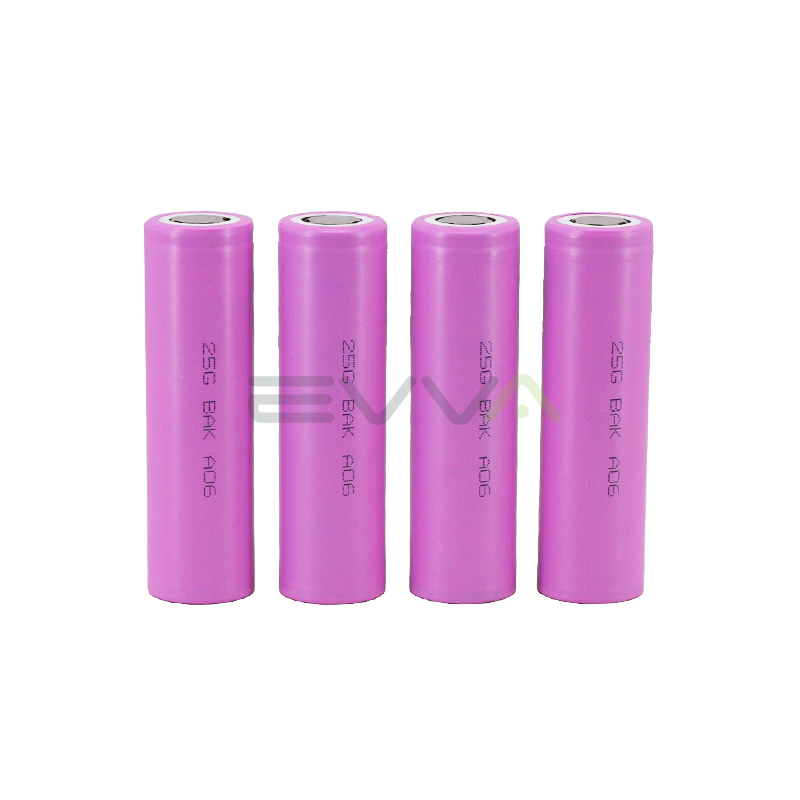

BAK N18650CNP 18650 2500mAh 20A High Drain Battery


18650 2500mAh Li-ion battery with 20A max.continuous dischagre
tem Specification
Nominal Voltage 3.6V
Nominal Capacity 2500mAh
Minimum Capacity 2400mAh
Std. Charge Current 1.7A
Continuous Max. Charge Current 4A
Internal Resistance  below 16 mΩ
Continuous Max. Discharge Current 20A (for cycle life)
30A (not for cycle life)
Charge Voltage 4.2±0.05V
Cut-off Voltage 2.5V
Dimension 18.55mm(D)*65.10mm(L) max.
Weight 48.0g max.
Allowable Environment Temperature Charge: 0~50℃
Discharge: -20~75℃
Applicable to different wide range of field that requires high power, such as flashlight, emergency lighting,ebike, electric vehicle, e-scooter, power tools and some other portable devices,  etc.
EVVA is capable of assembling different battery packs by combining all A Grade battery cells and self-developed high-end BMS based on our professional rich skills.

Welcome OEM orders.
