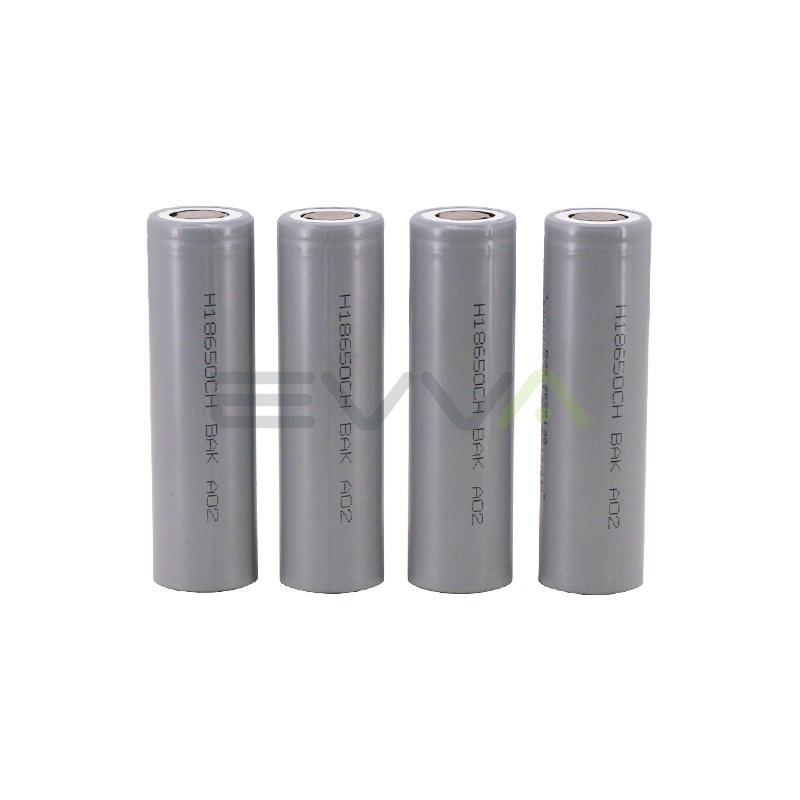

BAK H18650CH 3.6V 2600mAh Rechargeable Li-ion Battery
18650 2600mAh Li-ion rechargeable battery with similar specification as Sansung ICR18650-26J
Item |
Specification |
Nominal Voltage |
3.6V |
Nominal Capacity |
2600mAh |
Minimum Capacity |
2500mAh |
Std. Charge Current |
0.5C |
Continuous Max. Charge Current |
1.0C |
Internal Resistance |
below 30 mΩ |
Continuous Max. Discharge Current |
3.0C (not for cycle life) |
Charge Voltage |
4.2±0.05V |
Cut-off Voltage |
2.75V |
Dimension |
18.55mm(D)*65.10mm(L) max. |
Weight |
48.0g max. |
Allowable Environment Temperature |
Charge: 0~50℃
Discharge: -20~60℃ |
Applicable to Laptop, Power Bank, ESS(Energy Storage System), UPS(Uninterruptible Power Supply), Lighting and other
portable devices, etc.
EVVA is capable of assembling different battery packs by combining all A Grade battery cells and self-developed high-end BMS based on our professional rich skills.
Welcome OEM orders.
