Date:2023-02-15

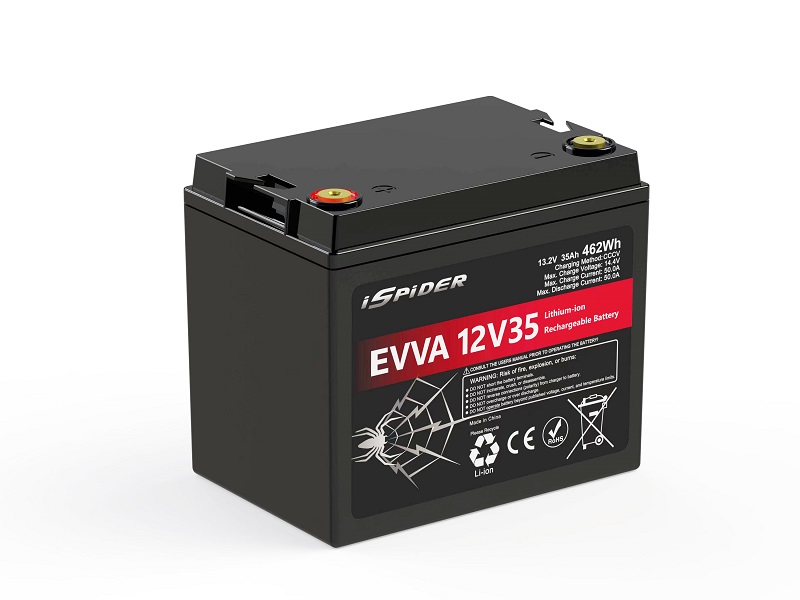

12V 13.2V 35Ah Deep Cycle Lithium ion Battery with M6 Terminal


Select Lithium Werks LiFePo4 cells as the major part,together with intelligent BMS, high performance,safety and long cycle life are second to none.
Model EVVA-12V35
Nominal Voltage 13.2V
Nominal Capacity@0.2C 35Ah
Battery Chemistry Lithium iron phosphate (LiFePo4)
Energy 462Wh
Internal Resistance (AC) 50mΩ
Cycle Life@1C 100% DOD >4000 Cycles @ 1C 100% DOD
Max.Charge / Discharge Current 50A
Peak Discharge Current 100A (1S)
Monthly Self Discharge Less than 2%
Efficiency of Charge 100% @0.5C
Efficiency of Discharge 96~99% @1C
Charge Voltage 14.6±0.2V
Charge Model 0.2C to 14.6V, then 14.6V, charge current to 0.02C
BMS Discharge Cut-off Voltage 8.0~9.5V
Operating Temperature Charge: 0~45℃
Discharge: -30~60℃
Storage: -40~70℃
Dimension (L*w*H)
(L)194.0*(W)132.0*(H)173.0± 2.0 mm
Weight 5.6 +/- 0.1 kg
Container Materials ABS+PC
Terminal M6
IP Class IP65
With the excellent features of long cycle life, fast charging, high rate of discharge performance, light weight and stable safety, EVVA 12V LiFePo4 battery is ideal for a wide range of application fields, such as Uninterruptible UPS systems (Industrial automation, Server UPS), Off-grid power systems, Industrial Systems. Electric mobility, Solar Storage, Medical equipment and so forth.
