Date:2022-08-20

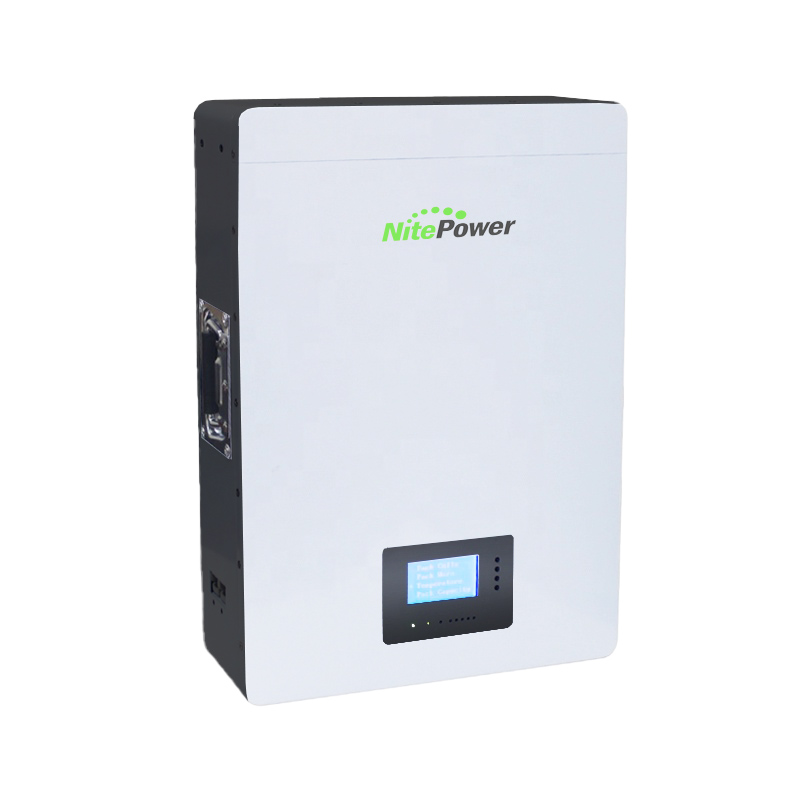

Wall Hang Mounted Installed 48V 100Ah 5KW Energy Storage Power Wall LiFePo4 Battery


The LiFePo4 type of cells used inside can provide high performance but safer characteristic and longer cycle life.
Nominal Voltage 48V (15S1P)
Nominal Capacity 100Ah
Continuous Discharge Power@50% SOC 4800W
Cycle Life over 2500 cycles @80% DOD, 0.2C/0.2C
Communication Port RS485/CAN
Charge Voltage 54V
Charge Current 20.0A@25dgC
Max. Charge Current 100A
Discharge Current 50A
Max. Continuous Discharge Current 100A
Discharge Cut-off Voltage 39V
Operating Temperature -20~60dgC
Shall Materials Sheet metal chassis
Battery Size 600(L)*398(W)*164(H)mm
Pack Weight 42KG
With LCD display to show detailed battery parameters.
with Canbus for remote control and communication, suitable for applications like telecom base station energy storage, home energy storage system,  UPS backup power supply etc.
