| Item | Specification |
| Cell Type | Lithium iron Phosphate |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 100.0Ah |
| AC-impedance | ≤0.7mΩ |

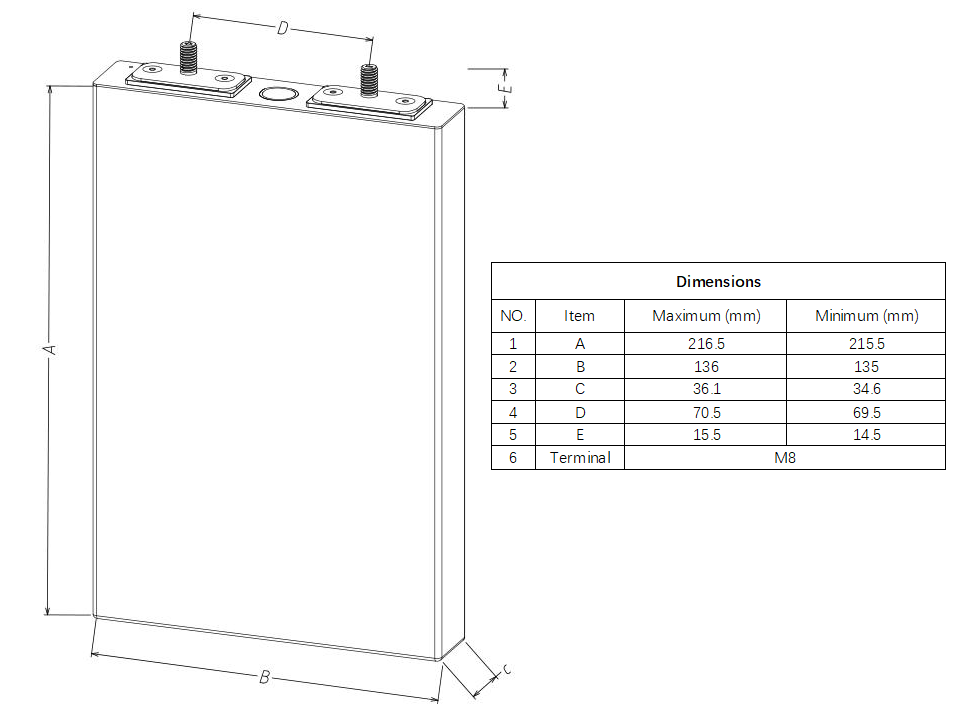

| Dimension | 217mm*136mm*36.1mm max. |
| Weight | 2.04±0.05kg |
| Max. Charge Current | 1C (100A) |
| Full charge Voltage | 3.65V |
| Max. Discharge Current | 1C (100A) |
| Discharge Cut-off Voltage | 2.5V |
| Operating Temperature |
Charge: 0~45℃ Discharge: -20~50℃ |
| Storage Temperature |
1 month: -20~45℃ 6 months: -20~25℃ |
