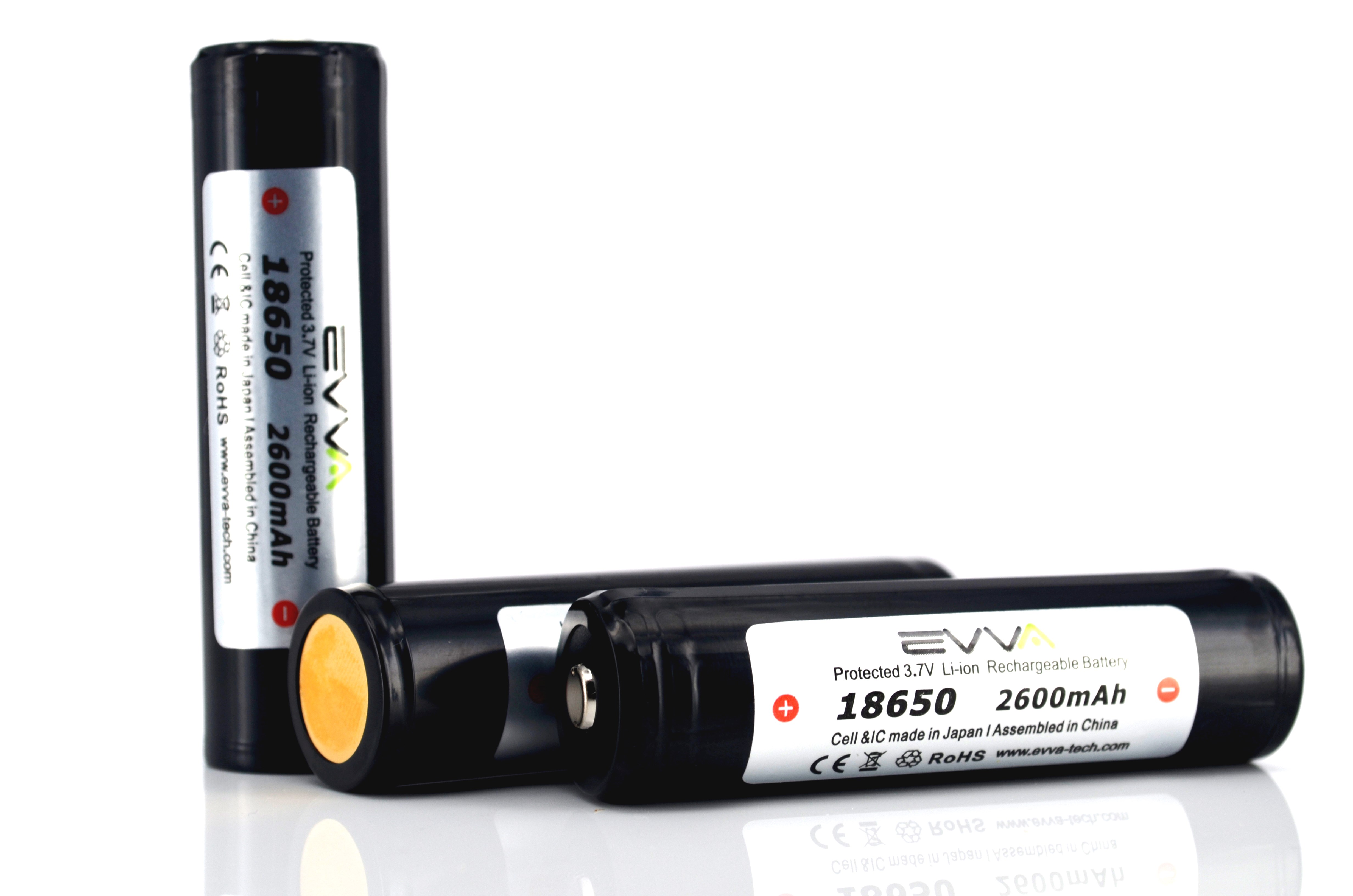

Li-ion Rechargeable 3.7V Protected 18650 2600mAh Battery for Flashlight


Built-in Seiko IC and Three MOSFETs to protect battery from over charge, over discharge, short circuit, over temperature and low temperature
Specifications



Type

18650 lithium rechargeable battery protected for flashlight

Supplier

EVVA TECHNOLOGY CO.,LIMITED

Cell

Samsung SDI ICR18650-26F 2600mAh

Nominal voltage

3.7 V

Nominal capacity

2600mAh



discharge at 0.2C mA

Minimal capacity

2500mAh

Stanard Charge voltage

4.20V ( Full Charged Voltage )

Standard Charge current

1300mA

Charge Time(Std.)

3 hours

Discharge cut-off voltage

2.75V

Standard Discharge current

520mA

Standard Discharge cut-off current

30mA

PCB protection trip current

about 10A

Operating environment

Charging, 0°C ~ 45°C ;  65±20%RH

Discharging, -20°C~60°C ;  65±20%RH

Storage environment

-20°C~60°C; Less than 1 month

-20°C~60°C; Less than 3 months

Cell Weight )

48 g max.

Cell Dimension

(L)68.90mm*(D)18.50mm



With genuine Samsung ICR18650-26F 2600mAh cells, high quality guaranteed.
Each battery is with protected circuit bard from: over discharge, over charge, short circuit
PCB: made of Seiko gold-coated protection plate,
PCB Voltage: 2.5V-4.2V
PCB MOS: 2 MOSFET version
