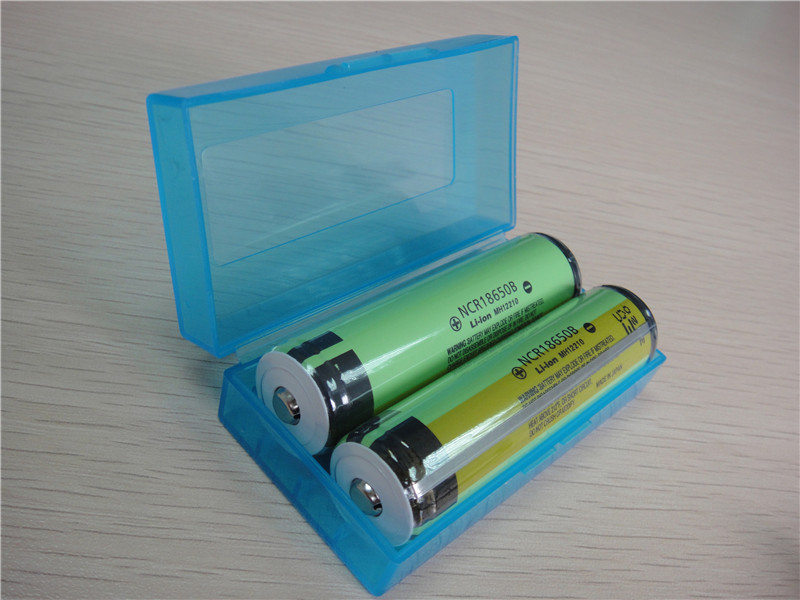

18650 3.7V 3400mAh Protected Panasonic NCR18650B Li-ion Battery with PCB


Protected NCR18650B Li-ion 18650 3400mAh rechargeable battery assembled with gold-coated PCB which is composed of Seiko IC chip and 2pcs of MOSFETs. The quality PCB and cells themselves allows the battery to work at 6A.

Specifications

Type

18650 lithium rechargeable battery protected

Supplier

 EVVA TECHNOLOGY CO.,LIMITED

Cell

 Panasonic NCR18650B

Nominal voltage

3.7 V

Nominal capacity

3400mAh



discharge from 4.2V to 3.0V at 0.2C mA

Minimal capacity

3300mAh

Max charge current

3400 mA    1C

Charging method

charge with constant current 1C to 4.2V, then charge with constant voltage 4.2V  till charge current is less than 0.01C

Discharge cut-off voltage

3.0 V,  the over-discharge detection voltage of  PCM

Operating environment

Charging, 0°C ~ 45°C ;  65±20%RH

Discharging, -20°C~60°C ;  65±20%RH

Storage environment

-20°C~45°C
65±20%RH

storage for a long time(>3 months) and the storage condition shall be:<35°C;65±20%RH;3.7~3.9V

Cell Weight )

50 g max.

Cell Dimension

(L)68.90mm*(D)18.60mm
