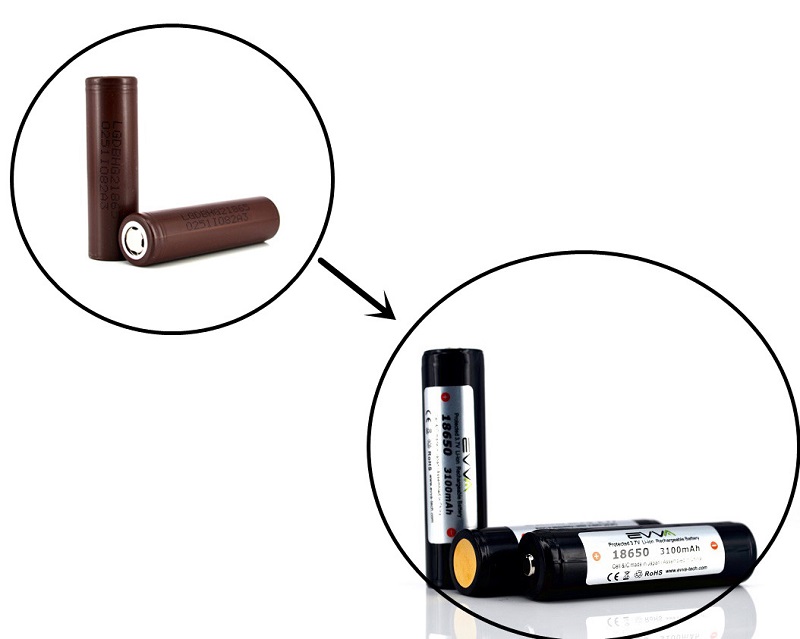

LG 18650 HG2 3000mAh 20A Li-ion High Drain Battery Cell for High Performance Battery Pack


3000mAh capacity with 20A high drain current, widely applied to battery pack for power tools, drill, e-scooter and other electronic devices which need high performance

Specifications

Item Condition / Note Specification
Capacity Std. charge / discharge

3000mAh

Nominal Voltage Average of Std. Discharge 3.60V
Standard Charge

Constant current

1500mA



Constant voltage

4.20V
End current(Cut off) 50mA
Fast Charge Constant current 4000mA
Constant voltage 4.20V
End current(Cut off) 100mA
Max. Charge Voltage 4.20V±0.05V
Max. Charge Current 4000mA
Standard Discharge

Constant current

End voltage(Cut off)

600mA

2.5V

Fast Discharge



Constant current

End voltage(Cut off)



10000mA, 20000mA

2.5V

Max. Discharge Current For continuous discharge 20000mA
Weight Approx. Max. 47.0G
Operating Temperature

Charge

Discharge

0 ~ 50°C

-20~ 75°C

Storage Temperature

1 month

3 months

1 year

-20 ~ 60°C

-20 ~45°C

-20 ~ 20°C

Dimension

(D) 18.3 + 0.2/-0.3 mm

(H) 65.0 ± 0.2 mm


Applications
Power tools, balance vehicle, e-scooter, e-bike.

Other electronic devices
Note: These cells are unprotected cells and must be used into battery pack with a BMS/PCM.
