Samsung INR18650-30Q 3000mAh 15A Li-ion High Power Battery Cell 30Q


1. Cell origin: South Korea 2. Nominal capacity: 3000mAh 3. Continuous discharge: 15 amp 4. Dimension: 65.00(H)x18.4(D) max.

Specifications



NO. Item Specifications
1 Nominal Voltage 3.6V
2 Nominal Capacity 3000mAh
3 Nominal discharge capacity

3,000mAh
Charge: 1.50A, 4.20V,CCCV 150mA cut-off,
Discharge: 0.2C, 2.5V discharge cut-off

4 Standard charge CCCV, 1.50A, 4.20 ± 0.05 V, 150mA cut-off
5 Rapid charge CCCV, 4A, 4.20 ± 0.05 V, 100mA cut-off
6 Charging time Standard charge : 180min / 150mA cut-off
Rapid charge: 70min(at 25℃) / 100mA cut-off
7 Max. continuous discharge
Temperature cut-off 70°C

15A(at 25℃), 60% at 250 cycle

8 Discharge cut-off voltage
End of discharge
2.5V
( 2.5V discharge cut-off is better in cycle life )
9 Cell weight

48.0g max.

10 Cell dimension

Height : 64.85 ±  0.15  mm
Diameter : 18.33 ± 0.07mm

11 Operating temperature
(surface temperature)

 Charge : 0 to 50
(recommended recharge release < 45°C)
Discharge: -20 to 75
(recommended re-discharge release < 60°C)

12 Storage temperature
(Recovery 90% after storage)

1.5 year -30~25°C(1*)
3 months -30~45°C(1*)
1 month -30~60°C(1*)



 Note (1): If the cell is kept as ex-factory status (50±5% SOC, 25),
the capacity recovery rate is more than 90%of 10A discharge capacity
100% is1,950mAh at 25with SOC 100% after formation.





Applications

Suitable for most elcetronic devices, especially power tools such as e-bike and drill, e-cigarettes.

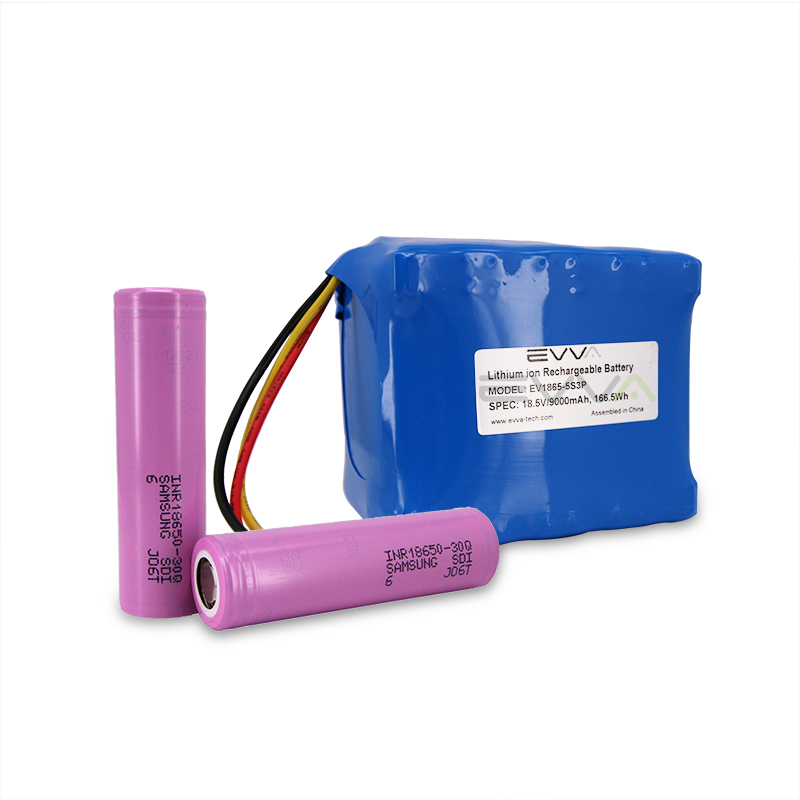

Cell Show
