Date:2019-09-07

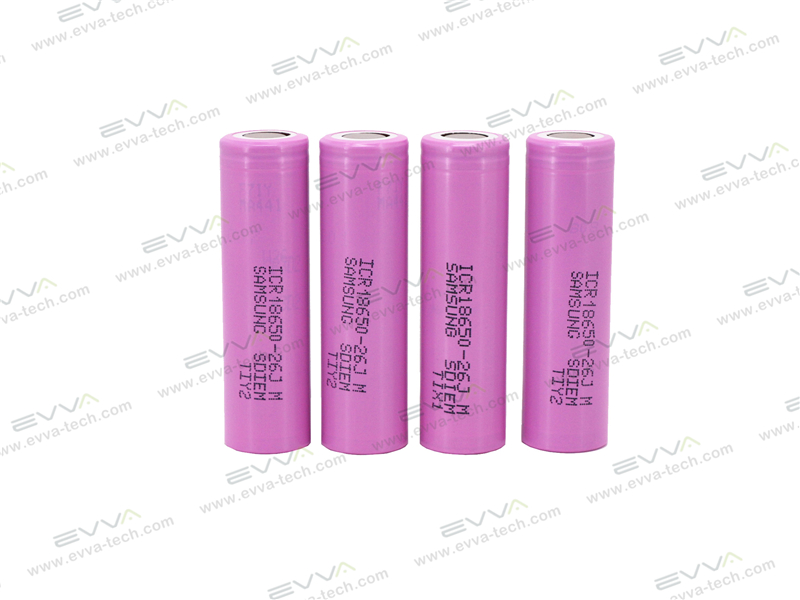

3.7V 2600mAh Samsung ICR18650-26JM Li-ion Rechargeable Battery Cell


26JM is the upgraded model of 26F
Items Specifications
Nominal Capacity 2600mAh
Nominal Voltage 3.7V
Std. Charge Current 0.5C (1.3A)
Std. Charge Voltage 4.2V
Std. Discharge Current 0.2C(520mA)
Discharge Cut-off Voltage 2.75V
Weight 45g
Dimension (D)18.5mm*(H)65.2mm max.
Operating Temperature Charge: 0~50
Discharge: -20~75

Application : Laptop, Power Bank, Lighting, outdoor services, ESS(Energy Storage System), UPS(Uninterruptible Power Supply)
※Based on the Nominal Capacity and MP Schedule
