Date:2022-07-20

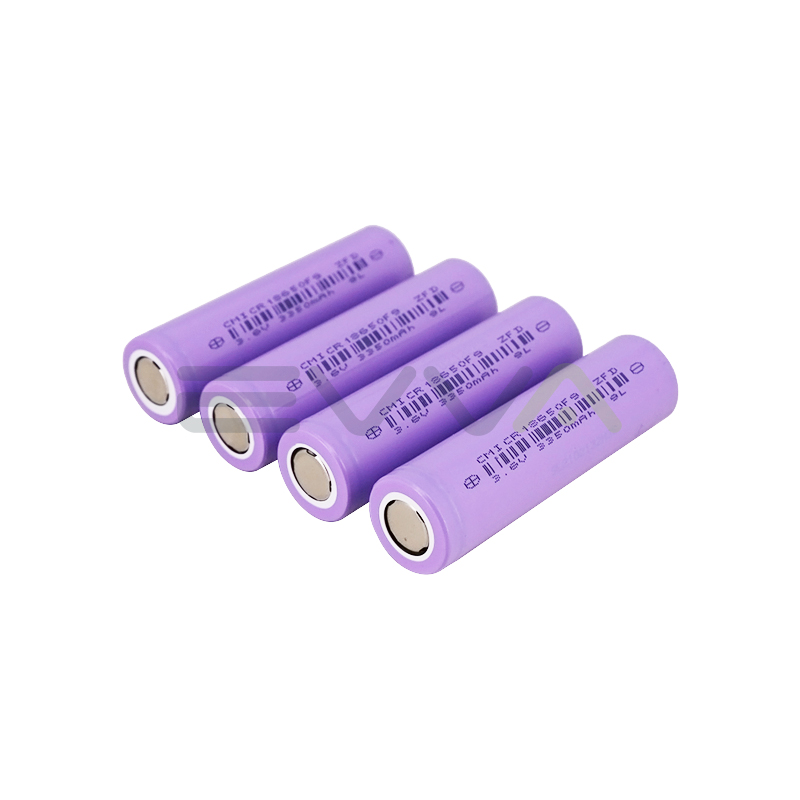

18650 3400mAh Li-ion Rechargeable Battery with PTC Cham ICR18650F9
With similar specification, this cell, with PTC,can be used as an alternative choice of Panasonic NCR18650B.
|
Item |
Specification |
|
Nominal Voltage |
3.6V |
|
Nominal Capacity |
3350mAh |
|
Minimum Capacity |
3250mAh |
|
Charge Voltage |
4.2V |
|
Std. Charge Current |
0.3C (975mA) |
|
Continuous Max. Charge Current |
0.5C (1625mA) |
|
End of Charge |
50mA |
|
Internal Resistance |
below 60mΩ |
|
Std. Discharge Current |
0.2C (650mA) |
|
Max. Discharge Current |
0.5C (1625mA) -20~5℃
1.5C （4875mA), 5~50℃ |
|
Max. Pulse Discharge |
2.0C (6500mA) |
|
Cut-off Voltage |
2.5V |
|
Dimension |
18.6mm(D)*65.20mm(L) max. |
|
Weight |
49.0g max. |
|
Allowable Environment Temperature |
Charge: 0~45℃
Discharge: -20~50℃ |
Applicable to different wide range of field of electronic devices, such as Laptop, Power Bank, ESS(Energy Storage System), UPS(Uninterruptible Power Supply), Lighting etc.
EVVA is capable of assembling different battery packs by combining all A Grade battery cells and self-developed high-end BMS based on our professional rich skills.
Welcome OEM orders.
