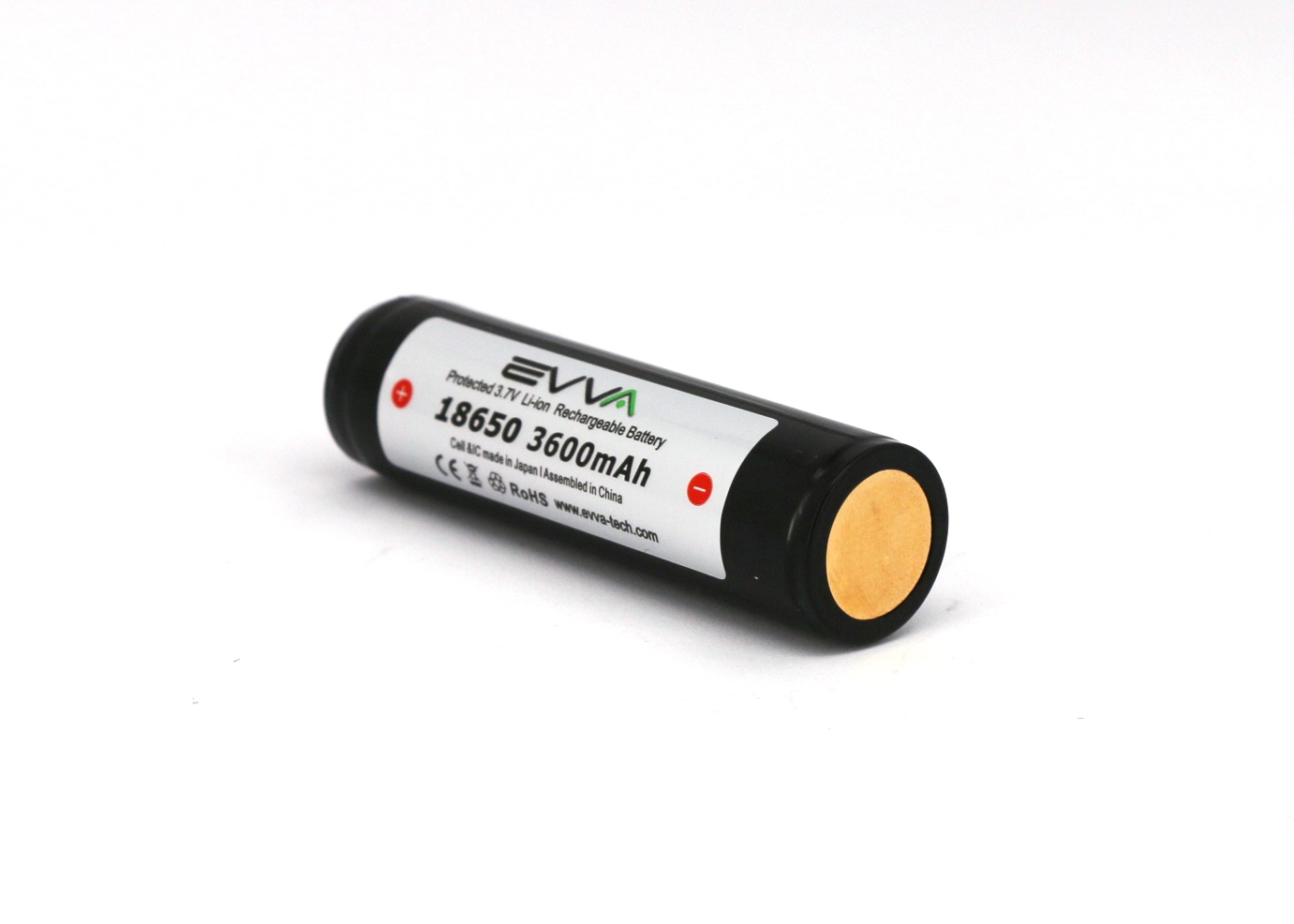

EVVA Protected 18650 3.7V 3600mAh Li-ion Rechargeable Battery


Buit-ion Seiko IC and three MOSFETs to protect battery from over charge, over discharge, short circuit, over temperature and low temperature

Specifications

Type

3.7V 3600mAh 18650 lithium battery protected

Supplier

EVVA TECHNOLOGY CO.,LIMITED

Cell

Panasonic NCR18650G high drain cell

Nominal voltage

3.7V

Nominal capacity

3600mAh

discharge at 0.2C mA

Stanard Charge voltage

4.20V ( Full Charged Voltage )

Standard Charge current

1800mA

Charge Time(Std.)

3 hours

Discharge cut-off voltage

2.50V

PCB Protection trip current

about 10A

Operating environment

Charging, 0°C ~ 45°C ;  65±20%RH

Discharging, -20°C~60°C ;  65±20%RH

Storage environment

-20°C~60°C; Less than 1 month

-20°C~60°C; Less than 3 months

Cell Weight )

50g max.

Cell Dimension

(L)68.90mm*(D)18.60mm
