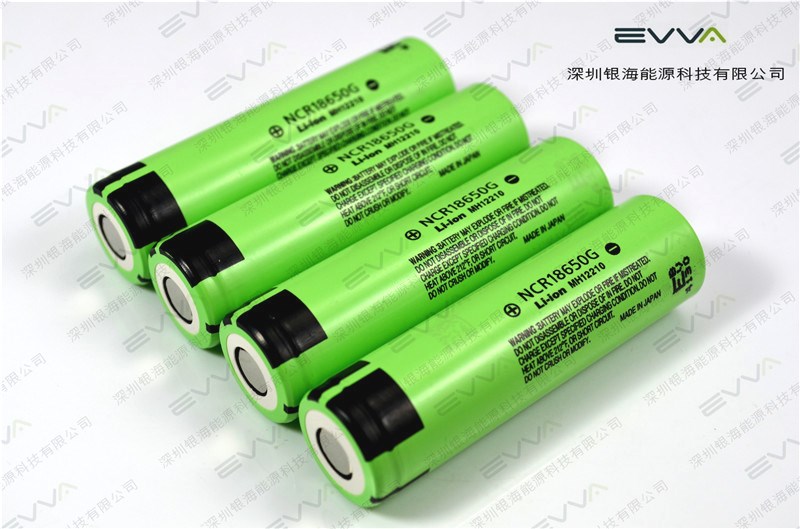

Panasonic NCR18650G 3600mAh Li-ion Battery Cell


The highest capacity among 18650 li-ion battery

Specifications

Item Specification
Nominal Capacity 3600mAh(0.2C, 2.50V discharge)
Charging Voltage 4.2±0.03V
Nominal Voltage 3.6V
Charging Method CC-CV (constant voltage with limited current)
Charging Time 5 hours
Discharge Cut-off Voltage 2.50V
Cell Weight 48.5g max.
Cell Dimension Height: 65.00mm max. Diameter: 18.25mm max.
Operating Temperature Charge: 0 to 45 °C Discharge:-20 to 60°C



Application
Cellular phone, note PC ect.
DVD/DSC/DVD/Portable LCD TV ect.
Portable CD player, MD player, Semiconductor-driven audio ect.
Electric Bike

For more information please feel free to contact us.
