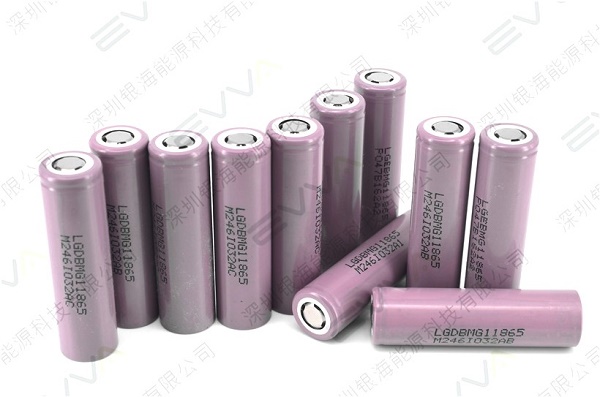

Lithium ion 18650 MG1 High Power Battery LG 2900mAh 10amps

LG 18650MG1 2900mAh 3.6V li-ion high power battery with 10A continuous discharge current

Specifications

NO.	Item	Specifications
1	Nominal Voltage	3.62V
2	Capacity	2850mAh Nominal 2750mAh Minimum
3	Discharge End Voltage	2.5V
4	Charge Current (Std.)	0.5C (1425mA), 50mA cut off
5	Charge Voltage	4.20V
6	Max. Charge Current	1.0C (2850mA)
7	Standrad Discharge	0.2C (570mA), 2.5V cut off
8	Continuous Discharging Current (Max.)	10A
9	Cell weight	46.0g
10	Cell dimension	Height : 65.2mm max. Diameter : 18.40mm max.
11	Operating temperature (surface temperature)	Charge : 0 to 45 (recommended recharge release < 45°C) Discharge: -20 to 60 (recommended re-discharge release < 60°C)
12	Storage temperature (Recovery 90% after storage)	1year -20~20°C 3 months -20~60°C 1 month -20~45°C

Applications

Suitable for most elcetronic devices, especially for thoses that require high discharge current such as e-bike and drill, e-scooters and power tools.
These cellls can only be applied to battery pack assembling by adding a BMS/PCM (protection circuit module)
