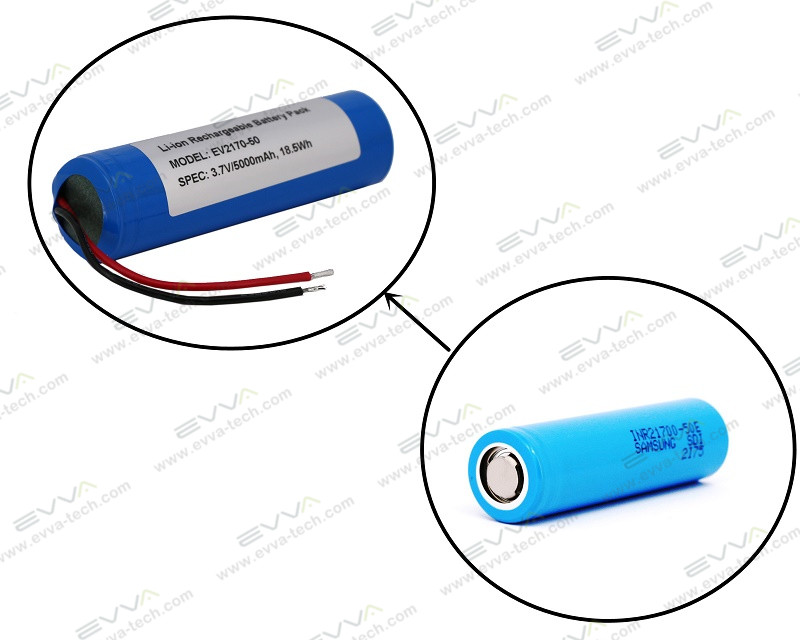

Samsung 21700 50E INR21700-50E 10A High Drain Li-ion Battery
Among Samsung 21700 models, INR21700-50E is with the higest capacity 5000mAh and not bad continuous discharge current 10Amps.
|
Item |
Specification |
|
Capacity |
Nominal: 5000mAh
Minimum: 4900mAh
Rated: 4753mAh |
|
Nominal Voltage |
3.6V |
|
Charging Voltage |
4.2V |
|
Charging Method |
CC-CV |
|
Charging Current |
Standard: 2450mA (3hours) |
|
Max. Charge Current |
4900mA (not for cycle life) |
|
Max. Discharge Current |
9800mA (for continuous discharge)
14700mA (peak current for a few seconds) |
|
Discharge Cut-off Voltage |
2.5V |
|
Cycle Life |
Capacity≥3802mAh after 500 cycles |
|
Weight |
69g max. |
|
Dimension |
70.80mm(H)*20.25mm(D) max. |
Application: Electric Bicycle, electric motorcycle, electric automobile, power tools, drills, and other electronic devices that requires high performance, especially high capacity.
Notice: The cell is used for battery pack assembling, and it needs to add a protection circuit module before use.
EVVA is capable of assembling different battery packs by combining these high-end battery cells and self-developed BMS based on our professional rich skills.
Welcome OEM orders.
