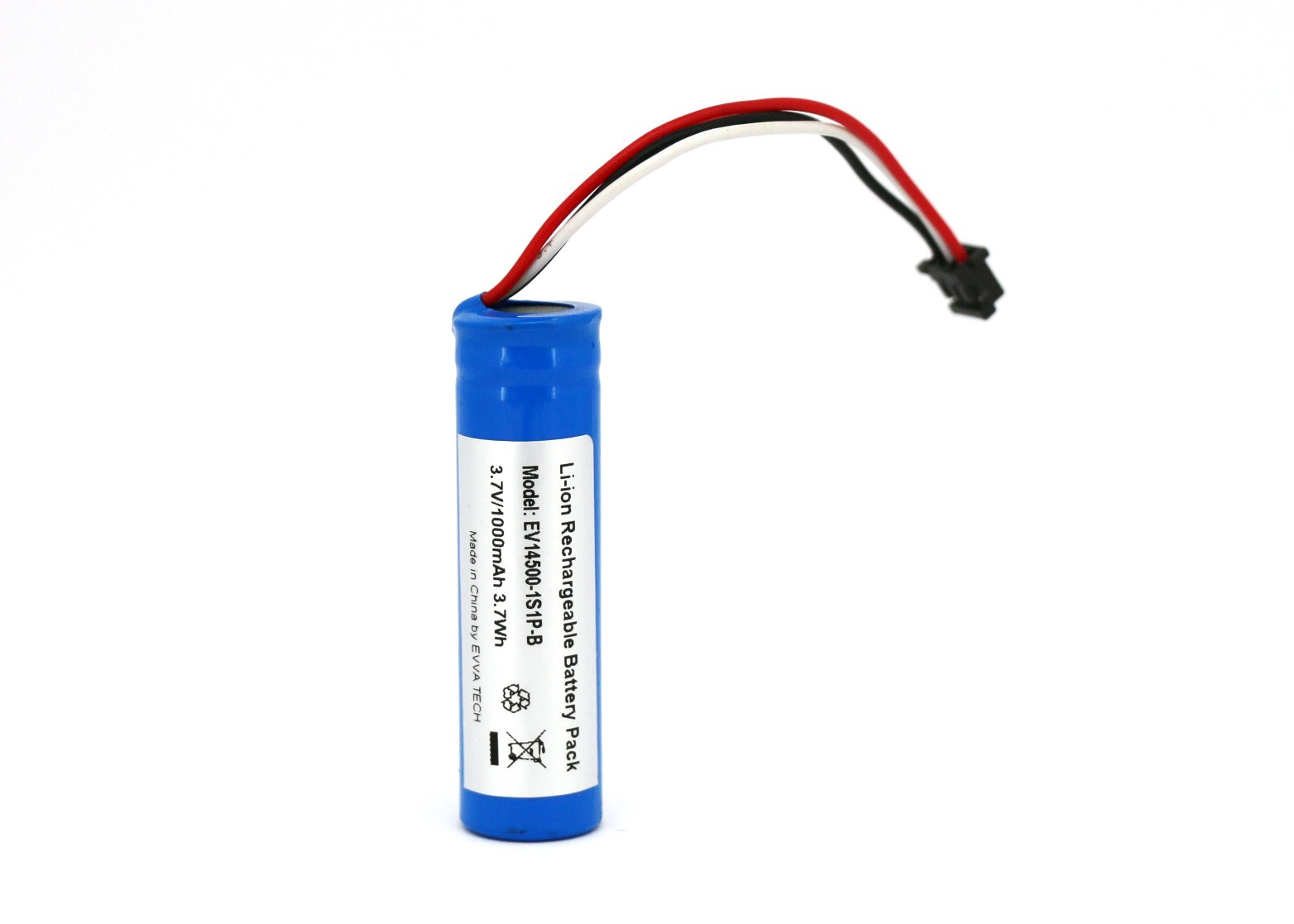

1S1P 14500 AA Li-ion Rechargeable Battery Wires Out 3.7V 1000mAh


High-end 14500/AA Li-ion rechargeable battery with protection circuit module.
Item
Specification
Model
EV14500-1S1P-B
Nominal Capacity
1000mAh
Nominal Voltage
3.7V
Charging Voltage
4.2V
Rapid Charge Current
1.0C
Maximum Discharge Current
1.0C for continuous
2.0C for peak
End Voltage of Discharge
2.75V
Cycle Life
>300cycles
Weight
25g max.
Size
52.00mm(H)*15.00mm(D) approximate
Customized
Acceptable


Made of 1pcs of 14500/AA Li-ion rechargeable cell with PCB protection circuit.
Protect against over charge, over discharge, short circuit and over current
Applicable to a variety of portable electronic devices
OEM orders available
Contact us for more information
