LG INR18650 M26 2600mAh 10A High Drain Lithium ion Battery
2600mAh with 10A discharge, applicable to light electric vehicle
Item |
Specification |
Standard Capacity |
Nominal: 2600mAh
Minimum: 2500mAh |
Nominal Voltage |
3.65V |
Standard Charge |
Constant current: 0.5C (1250mA)
Constant voltage: 4.2V
End condition (cut-off): 50mA |
Max. Charge Voltage |
4.2V |
Max. Charge Current |
1.0C (2500mA) |
Standard Discharge |
Constant current: 0.2C(500mA)
End voltage (cut-off): 2.75V |
Max. Discharge Current |
10A |
Max. Temperature Limit |
75℃ |
Weight |
44.0g approx. |
Dimension |
18.4mm*65.2mm (max.) |
Application |
Light electric vehicle |
Applicable to lighting, e-bike, e-scooter, electric vehicles, ESS, power tools, home appliances and many other electronic devices.
Notice: The cell is used for battery pack assembling, and it needs to add a protection circuit module before use.
Please notice that this cell is not for sale.

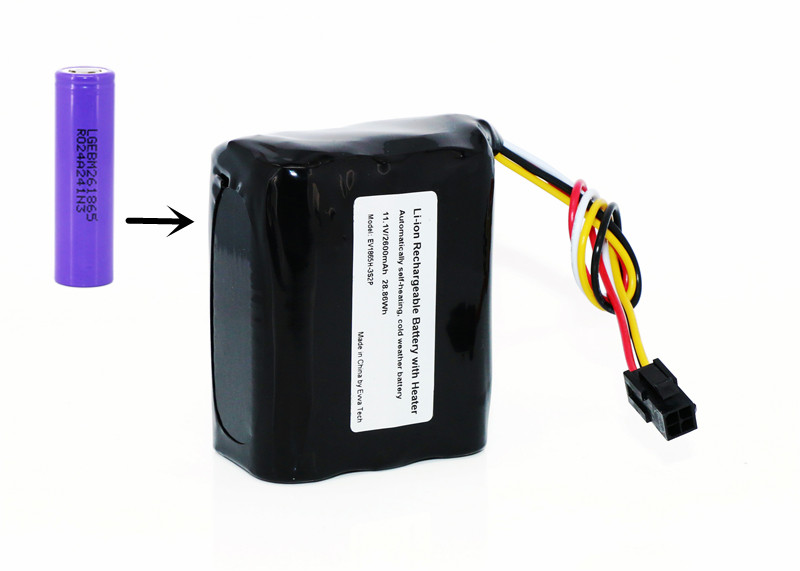

EVVA is capable of assembling different battery packs by combining these high-end battery cells and self-developed BMS based on our professional rich skills.
Welcome OEM orders..
