Date:2019-12-24

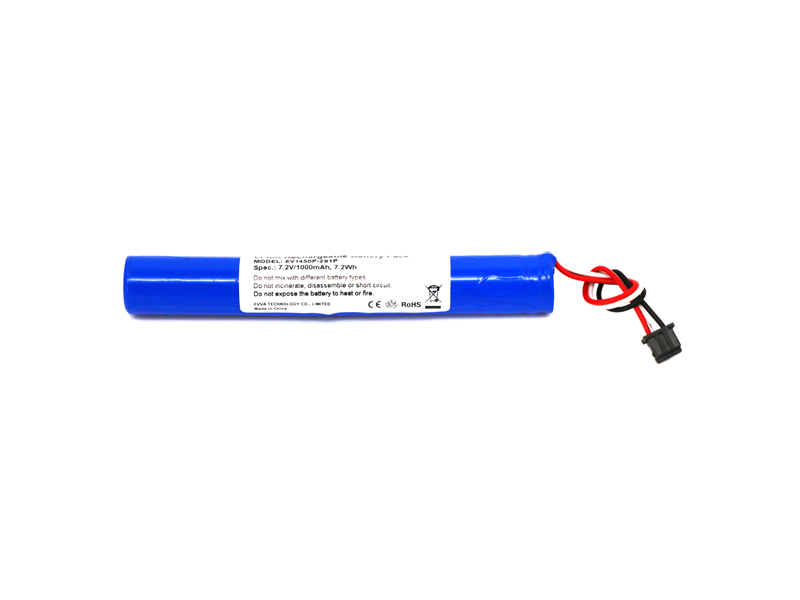

OEM 14500 AA 2S1P Li-ion Rechargeable Battery Wires Out 7.4V 1000mAh


Customized battery pack composed of 2pcs AA Li-ion cells, PCM and connector
Item Specification
Model EV1450P-2S1P
Nominal Capacity 1000mAh (customized)
Nominal Voltage 7.4V
Charging Voltage 8.4V
Standard Charge Current 0.5C
Rapid Charge Current 1C
Standard Discharge Current 0.2C
End Voltage of Discharge 5V
PCB Function Protecting battery from over-charge, over-discharge,
short circuit, over temperature, etc.
Cycle Life ≥500 cycles
Weight 45g max
Dimension 133mm(H)*15mm(D) approximate
OEM Acceptable

Made of 2pcs of 14500 or AA Li-ion rechargeable cell with PCB protection circuit.
Applicable to a variety of portable electronic devices
OEM available.
