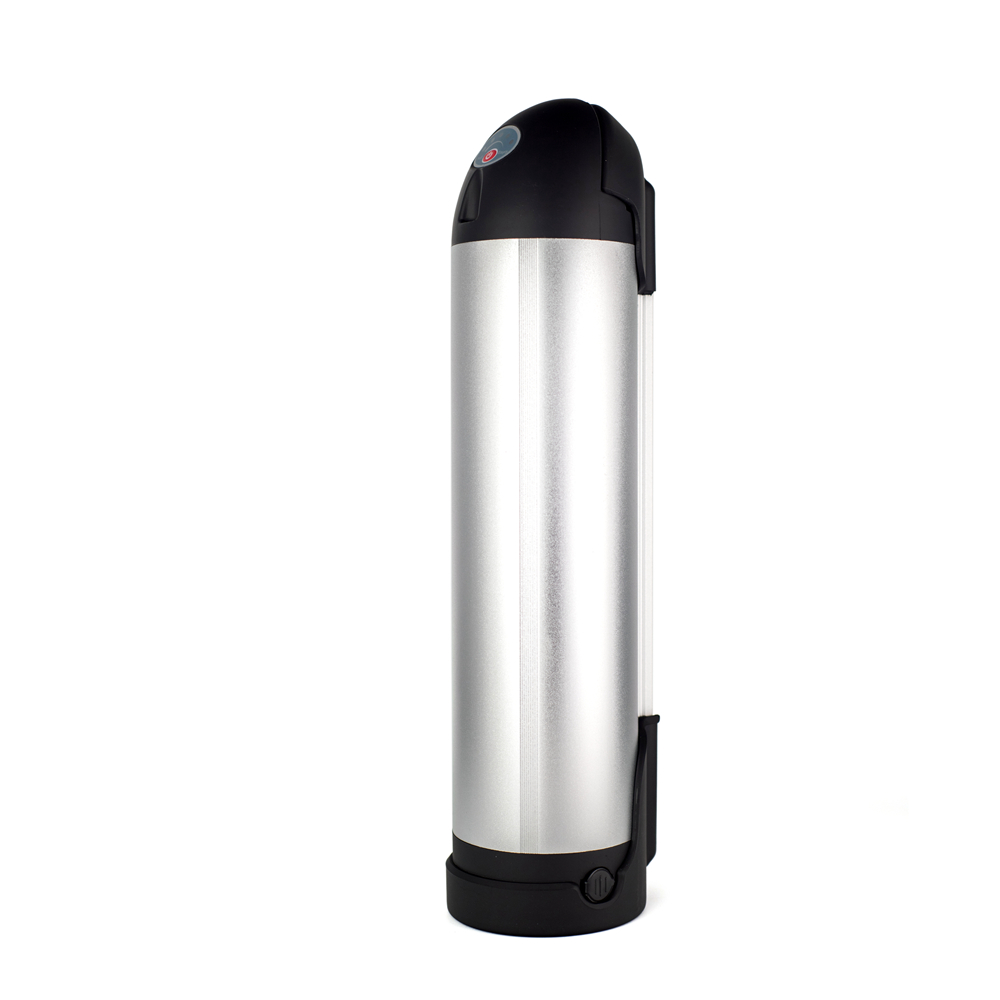

36V 12Ah 13Ah 14Ah Lithium 10S4P Electric Bike Battery Pack with BMS


Apply A Grade brand battery cells, high-end BMS, waterproof case to ensure high performance and advanced quality.
Items Specifications
Description 36V Bottle Battery Pack for Ebike
Model EV10S4P
Nominal Voltage 36V
Nominal Capacity 12Ah, 13Ah, 14Ah (OEM)
Cells Origin Samsung, Panasonic or LG Chem
Charge Current 1.7A-4.2A
Charge Voltage 42V
Continuous Discharge Current 10-20A
Over Discharge Protection Voltage 2.5±0.025V per cell
Over Charge Protection Voltage 4.25±0.025V per cell
BMS Function Against over charge, over discharge, short circuit and over temperature, balancing, etc.
Weight 2.85kg approx.
Dimension 336mm(H)*111mm(D) approx.
Case Aluminium Case
Operating Temperature Charge: 0~45 dgC
Discharge: -20~55 dgC
Cycle Life 500 cycles, 80%
Applicable to electric bicycle, mountain bicycle, excite bike, etc.
Use A Grade Li-ion cells directly from Samsung, LG Chem, Panasonic (Sanyo), Molicel etc, high-end self-designed BMS.
OEM orders are available.
