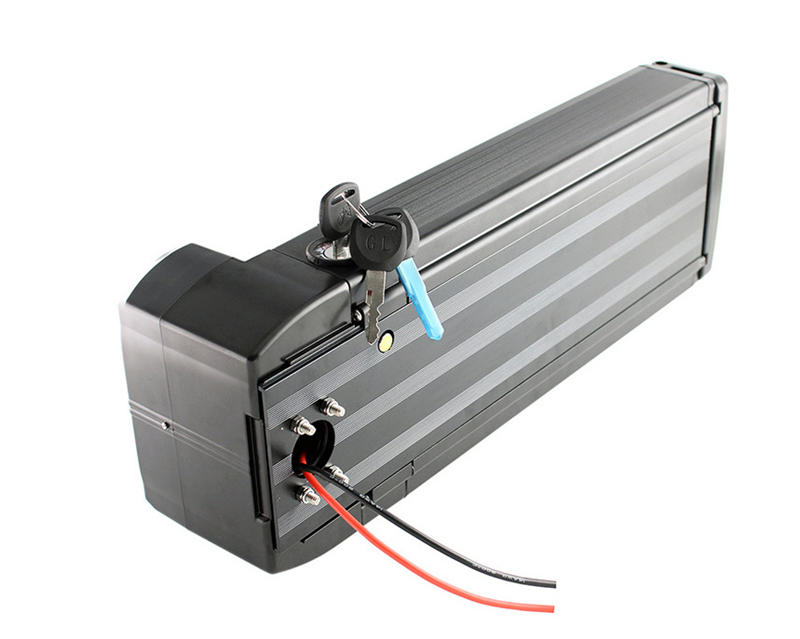

OEM Rear Rack 36V 48V Ebike Li-ion Battery 10S5P 13S4P

Fit Ebike with 10S5P 36V or 13S4P 48V battery.A Grade brand cells and built-in BMS enable a high performance battery pack for ebike.
Items Specifications
Description Rear Rack 36V 48V Ebike Battery
Model EV13S4P-T2
Nominal Voltage 36V or 48V
Nominal Capacity 15Ah (can be customized from 8.8Ah~17.5Ah)
Cells Origin Original A Grade brand cells from Panasonic, Samsung or LG Chem
Charge Voltage 42V or 54.6V
Max. Continuous Discharge Current 20A (OEM)
Over Discharge Protection Voltage 2.5±0.025V per cell
Over Charge Protection Voltage 4.25±0.025V per cell
BMS Function Against over charge, over discharge, short circuit and over temperature, balancing, etc.
Weight 3.5kg approx.
Dimension 427mm(L)*105mm(W)*105mm(H)
Tail Light For choice
Case Aluminium Case
Color Silver, black
Operating Temperature Charge: 0~45 dgC
Discharge: -20~55 dgC
Cycle Life Over 80% capacity after 500 cycles,
Applicable to electric bicycle, mountain bicycle, excite bike, etc.
Use A Grade Li-ion cells directly from Samsung, LG Chem, Panasonic (Sanyo), Molicel etc, high-end self-designed BMS.
OEM orders are available such as height, capacity, plug, etc
