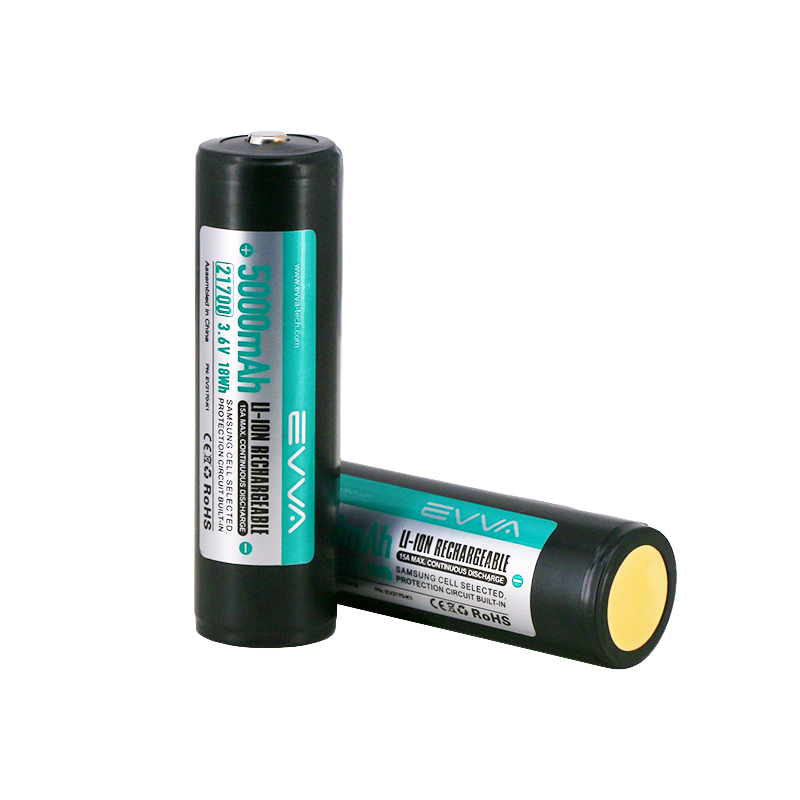

| Part No. | EV2170-K1 |
| Cell origin | A Grade Samsung 21700 cells |
| Nominal Capacity | 5000mAh |
| Minimum Capacity | 4900mAh |
| Nominal Voltage | 3.6V |
| Standard Charge Voltage | 4.2±0.5VV |
| Standard Charge Current | 2A |
| Max. Charge Current | 4A |
| Protection Circuit | Built-in, with over charge, over discharge and short circuit protection |
| Std. Discharge Current | 5A |
| PCB Protection Trip Current | 15A |
| Discharge Cut-off Voltage | 2.50V |
| Dimension | (D)21.60mm*(H)75.60mm max. |
| Weight | 75g max. |
| Operating Temperature |
Charge: 0~45dgC Discharge: -20~55dgC |
