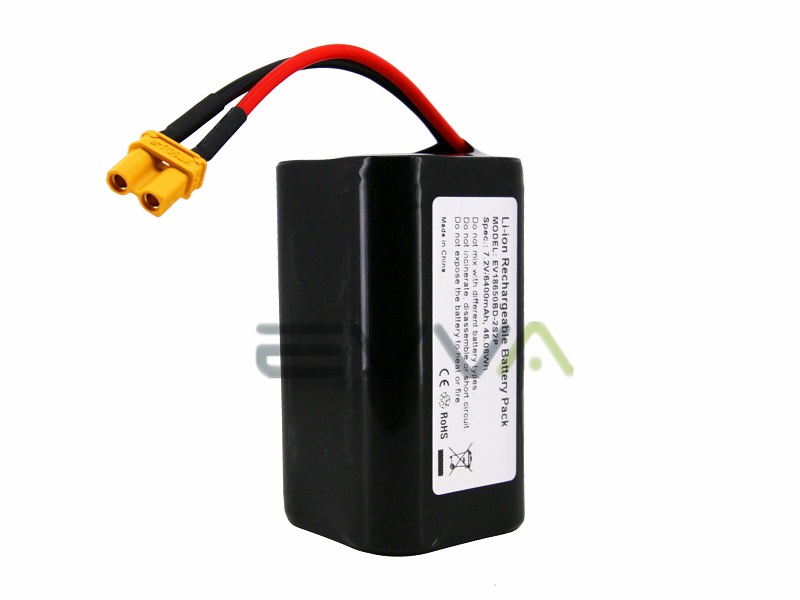

| Model | EV18650BD-2S2P |
| Part No. | 2002-03-AM20 |
| Cell origin | A Grade Panasonic NCR18650BD Li-ion cells |
| Nominal Capacity | 6400mAh (customized) |
| Nominal Voltage | 7.4V |
| Std.Charge Voltage | 8.4V |
| Std.Charge Current | 0.5C |
| Std. Discharge Current | 0.2C |
| Max. Discharge Current | 10A (Customized) |
| PCM built-in | Yes |
| Connector | XT30 |
| PCM function | Protect battery from over-charge, over-discharge and short circuit |
| Discharge Cut-off Voltage | 6V |
| Dimension | (L)36.50mm*(W)36.50*(H)68.20mm approx. |
| Weight | 200g max. |
| Operating Temperature |
Charge: 0~45dgC Discharge: -20~60dgC |
