24V 36V 48V 72V LEV Battery Pack with A Grade LG INR21700M58T 5570mAh 12.5A Cell

---

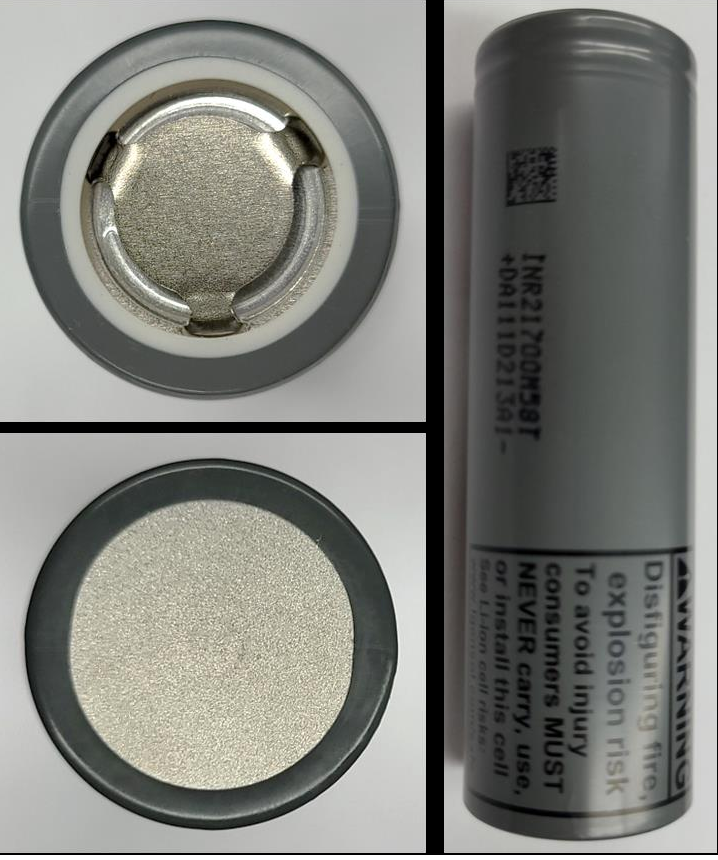

LG INR21700 M58T has higher capacity than the current 21700 cells and is suitable for LEV application.

Item	Specifications
Nominal Voltage	3.59V
Nominal Capacity	5800mAh
Minimum Capacity	5570mAh
Charge Voltage	4.20V
Discharge Cut-off Voltage	2.50V
Standard Charge Current	1120mA
Max. Charge Current	2.7A （4.20V cut off, 10~50℃） 5A (4.0V cut off, 10~40℃）
Max. Continuous Discharge Current	-20~70℃:12.5A
Pulse Discharge Current	-20~0℃: 9A (15 seconds) 0~60℃: 15A (15 seconds)
Dimension	21.8mm*71.0mm
Weight	73.2g max.
Operating Temperature	Charge: 0~50℃ Discharge: -20~60℃

This model is applicable to LEV (e-bike, e-scooter), ESS (energy storage system) and other electronic devices.
All cells should be used ONLY for use in Battery Packs with protective circuitry.
EVVA TECH is capable of providing OEM & ODM service on different battery packs for customers in different field
