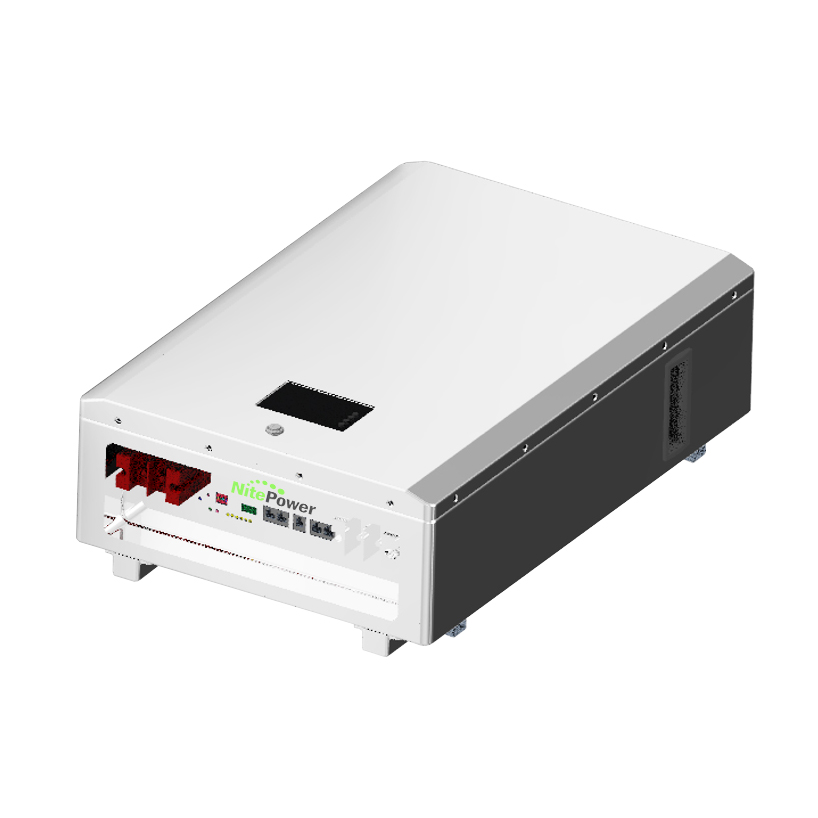

Wall Hang Mounted 48V 200Ah LiFePo4 10KW Battery Accu Pack for Home Energy Storage System

Select safer Lithium ion phosphate batteries,with built-in intelligent BMS, the battery offers exceptional performance and super long cycle life based on high safety standard.

Nominal Voltage	48V (15S2P module)
Nominal Capacity	200Ah
Continuous Discharge Power@50% SOC	9600W
Cycle Life	over 2500 cycles @80% DOD, 0.2C/0.2C
Communication Port	RS485/CAN
Charge Voltage	54V
Charge Current	40A@25dgC
Max. Charge Current	100A
Discharge Current	60A
Max. Continuous Discharge Current	100A
Discharge Cut-off Voltage	39V
Operating Temperature	-20~60dgC
Shall Materials	Sheet metal chassis
Battery Size	600(L)460(W)225(H)mm
Pack Weight	86KG
