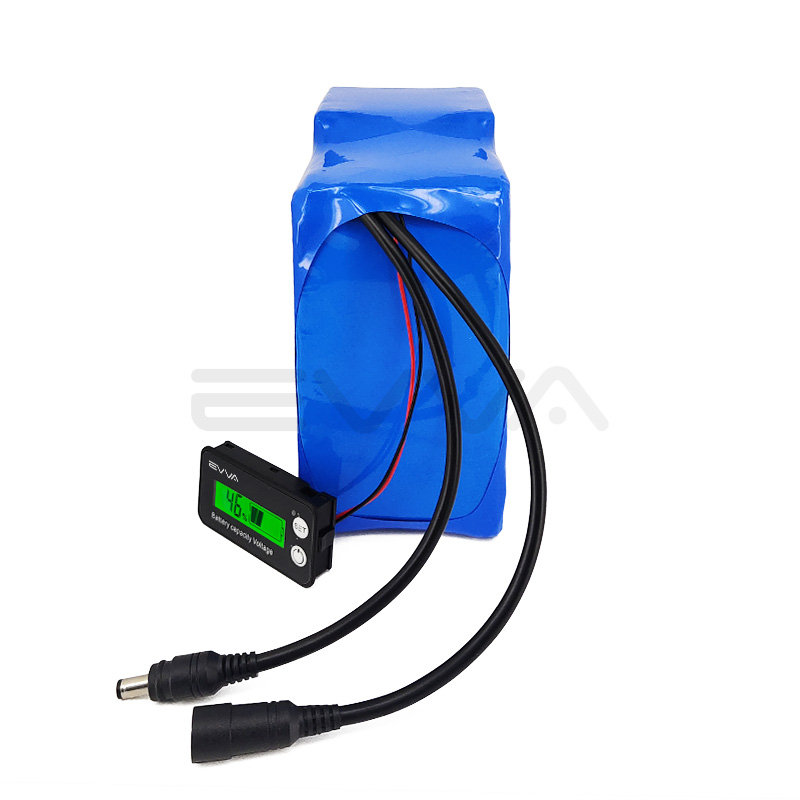

Custom 13S3P 48V 15Ah Lithium Battery Pack for PVW


Built in BMS to protect battery from over charge, over discharge and short circuit, with DC plugs for charge and discharge, with smart lcd screen to disply voltage and capacity
Model EV2170-13S3P-0788
Cells  Select A Grade Samsung and LG Lithium ion cells
BMS Against over-charge, over-discharge and short circuit, etc.
Nominal Voltage 48V
Nominal Capacity 15Ah (customized)
Full Charge Voltage 54.6V
Charge Current Std.: 3A
Max.: 5A
Discharge Current Max. 5A
Discharge Cut-off Voltage 32.5V
Capacity Voltage LCD Indicator Display a voltage range from 32.5V to 54.6V
Display capacity status
Weight 2.9KG approx.
Dimension 162mm*138mm*75mm approx.
Applied to lighting, player vedio workstation and so on.
EVVA specialize in high-end battery pack assembling, with high quality materials, advanced battery machines and professional production lines
Feel free to drop us your request for your own pack via [email protected]! .
