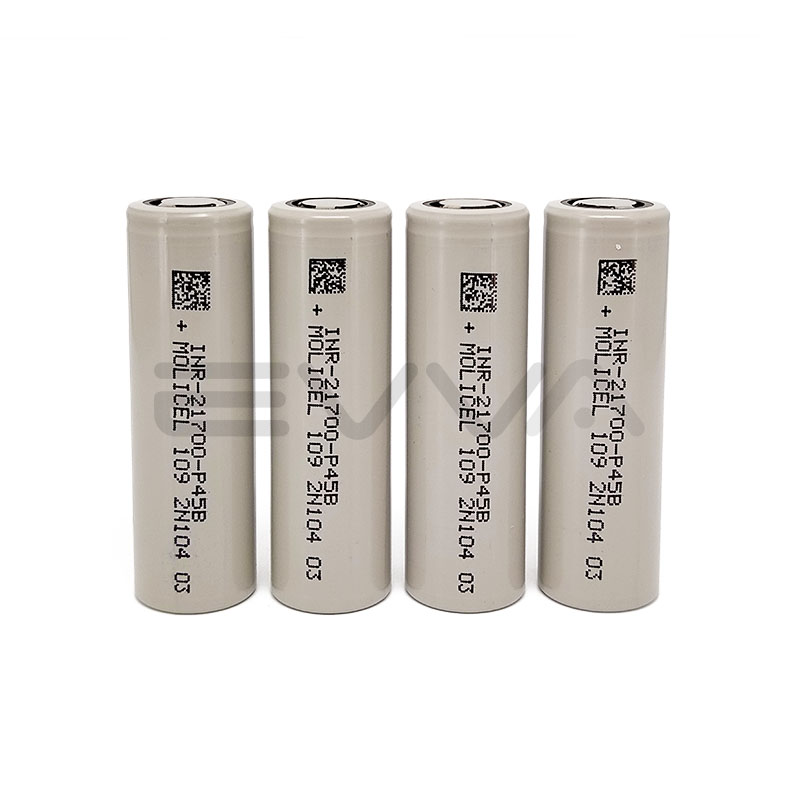

Molicel INR21700-P45B 3.6V 4500mAh 3C Charge 10C Discharge Lithium ion Cell 21700 P45B

3C (13.5A) charge capability, -40°C discharge capability
Items Specifications
Capacity Typical: 4500mAh
Minimum: 4300mAh
Cell Voltage Nominal: 3.6V
Charge: 4.2V
Discharge: 2.5V
Charge Current Standard: 4.5A
Maximum: 13.5A (60℃ cut-off)
Charge Time Standard: 1.5 hr
Max. Continuous Discharge Current 45A (80℃ cut-off)
Temperature Charge: 0℃~60℃
Discharge: -40℃~60℃
Energy Density Volumertric: 643wh/l
Gravimetric: 242 wh/kg
Typical Impedance AC (30%SOC): 7mΩ
DC (50%SOC): 13mΩ
Weight 70.0g approx.
Dimension 21.55mm*70.15mm (max.)
Applicable to power tools, electric vehicles, electric skateboard and many other fields that require high performance under wide working temperature range.
EVVA is pround of providing high-end Lithium ion solutions for all customers.
Contact us to start making your custom battery packs now!
