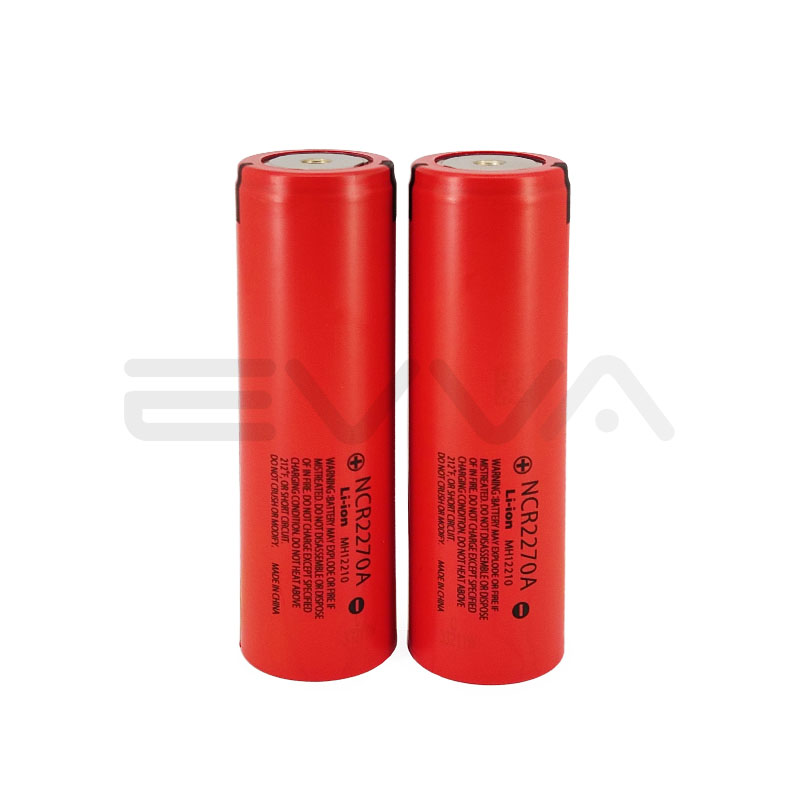

Panasonic NCR2270A 5630mAh 3.6V 21700 High Capacity Lithium-ion Rechargeable Battery

The 21700 cylindrical cell with higher energy density.


Items Specifications
Typical Capacity 5630mAh
Minimum Capacity 5435mAh
Nominal Voltage 3.6V
End Voltage 2.5V
Charge Voltage 4.2V max., CC-CV
Max. Continuous Charge Current 2718mA (0.5C)
Max. Continuous Discharge Current  12A
Weight  74.5g approx.
Dimension (D)22mm*(H)71mm max.
Temperature Charge: 0~45℃
Discharge: -20~60℃
Storage: -20~50℃

With 5630mAh capacity, 12.5A discharge current, Panasonic NCR2270A can be applied to entensive fields which require long lasting operating time and high power performance..
EVVA is capable of building custom battery packs for you using these cells.
Feel free to contact us via [email protected].
