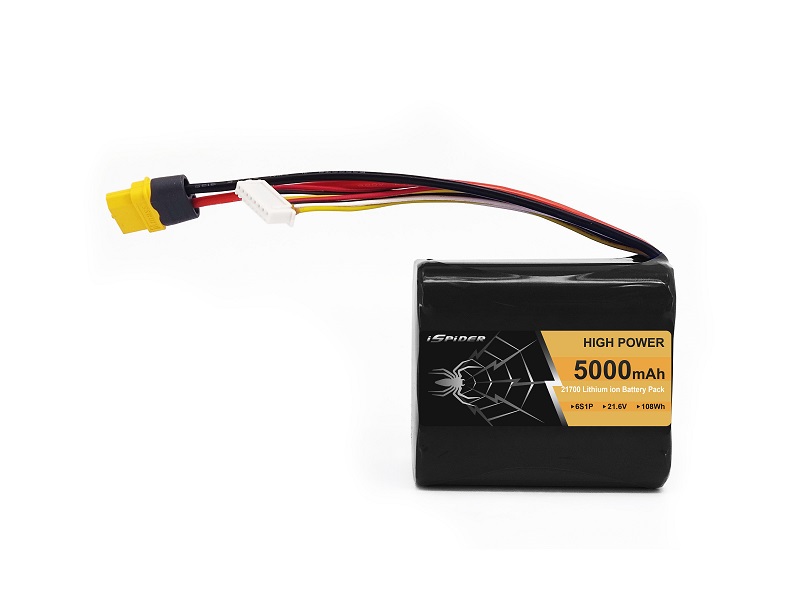

Li-ion Battery Pack 21.6V 5Ah 21700 6S1P with AMASS XT60 for UAV FPV Drone
Made of Samsung INR21700-50S or Moli INR21700-P50B high power cells, with superior resistance welding technology.
|
ITEM |
SPECIFICATION |
|
Model |
EV2170H-6S1P |
|
Connector |
AMASS XT60H-F, JST-XH-7P |
|
Nominal Capacity |
5Ah |
|
Minimum Capacity |
4.8Ah |
|
Nominal Voltage |
21.6V |
|
Max. Charge Voltage |
25.2V |
|
Max. Continuous Discharge Current |
30A (customized) |
|
Peak Discharge Current |
40A (customized) |
|
Temperature |
Charge: 0~60
Discharge: -20~80 |
|
Typical Impedance |
35mΩ |
|
Dimension |
74.68mm(L)*43.65mm(W)*75.39mm(H) |
|
Weight |
470g |
|
OEM service |
Capacity/dimension/connector etc. |
Applicable to FPV drone and UAV.
EVVA is capable of providing the optimal Lithium-ion solutions for customers from different fields.
Our full-automatic production lines for cylindrical battery packs can gurantee you high quality based on high effienciency rate.
If any inquires on custom battery packs, contact us freely via [email protected].
