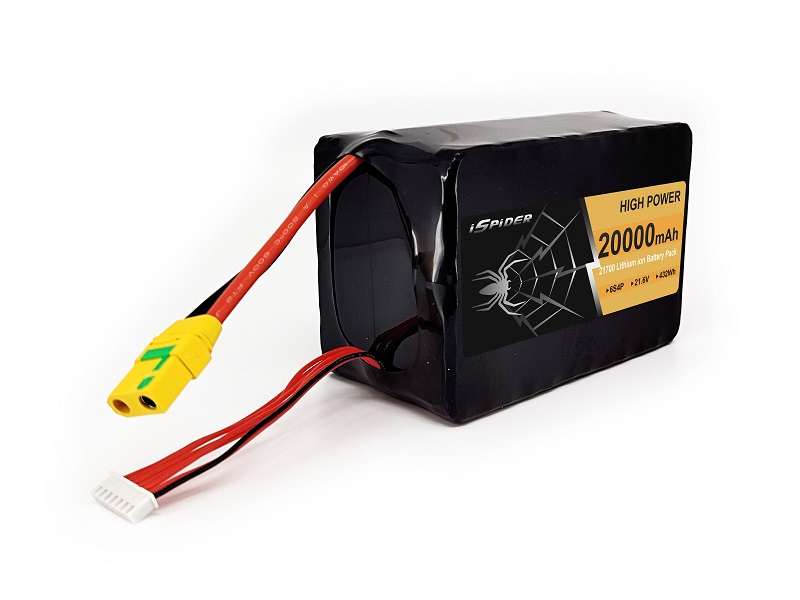

22.2V 6S 20000mAh 18650 21700 6S4P High Power FPV Drone Battery UAV Battery
State-of-the-art welding technology,superior UL standard raw materials
|
ITEM |
SPECIFICATION |
|
Model |
EV2170H-6S3P |
|
Connector |
AMASS XT90S-F, JST-XH-7P |
|
Nominal Capacity |
20Ah |
|
Minimum Capacity |
19.6Ah |
|
Nominal Voltage |
21.6V |
|
Max. Charge Voltage |
25.2V |
|
Std. Charge Current |
10A |
|
Max. Charge Current |
24A |
|
Max. Continuous Discharge Current |
40A, customized |
|
Peak Discharge Current |
60A, customized |
|
Temperature |
Charge: 0~60
Discharge: -20~80 |
|
Typical Impedance |
35mΩ |
|
Dimension (max.) |
149.0mm(L)*97.2mm(W)*76.5mm(H) |
|
Weight |
1.92kg |
|
OEM service |
Capacity/dimension/connector etc. |
Applicable to FPV drone and UAV.
EVVA is capable of providing the optimal Lithium-ion solutions for customers from different fields.
Our full-automatic production lines for cylindrical battery packs can gurantee you high quality based on high effienciency rate.
If any inquires on custom battery packs, contact us freely via [email protected].
