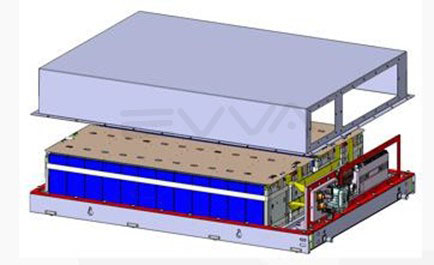

1P52S LFP Battery Box Standard Energy Storage Battery Box
Robust laser welding technology,support OEM service on battery box, battery rack and containerized ESS energy system.
|
ITEM |
SPECIFICATION |
|
Chemistry |
LFP |
|
Array Mode |
1P52S |
|
Nominal Capacity |
280Ah Custom |
|
Nominal Voltage |
166.4V |
|
Max. Charge Voltage |
189.8V (3.65V/cell) |
|
Max.. Charge Current |
1C |
|
Max. Continuous Discharge Current |
1C |
|
Peak Discharge Current |
Custom |
|
Impedance |
≤200 mΩ;(50% SOC (1C/10s,25 ℃)) to be measured |
|
Pack weight |
330kg approx. |
|
Temperature |
Charge: 0~50
Discharge: -20~50 |
|
Dimension (max.) |
248.3mmx854.7mmx1125.1mm |
|
IP rating |
IP54 |
|
OEM service |
Capacity/dimension/housing direction etc. |
EVVA is capable of providing the optimal Lithium-ion solutions for customers from different fields.
Our full-automatic production lines for cylindrical battery packs can gurantee you high quality based on high effienciency rate.
If any inquires on custom battery packs, contact us freely via [email protected].
