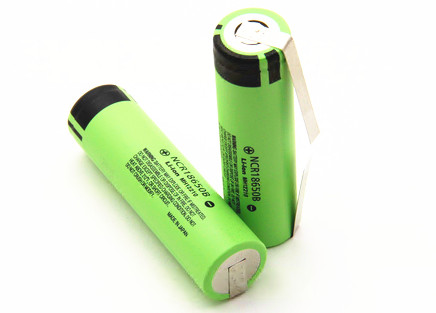

18650 Rechargeable Li-ion Battery Cell with Spot-welding Tabs


Available for all li-ion cell, with pure nikel strip, customized length.
Items Specifications
Nominal Capacity 2600mAh
Minimum Capacity 2500mAh
Nominal Voltage 3.7V
Std. Charge Current 1.75A
Std. Charge Voltage 4.2V
Std. Discharge Current 2.5A
Max. Discharge Current 5A
Discharge Cut-off Voltage 3.0V
Weight 48g
Dimension (D)18.5mm*(H)65.2mm max.
Operating Temperature Charge: 0~50
Discharge: -20~75

Application : Laptop, Power Bank, Lighting, outdoor services, ESS(Energy Storage System), UPS(Uninterruptible Power Supply)
※Based on the Nominal Capacity and MP Schedule
